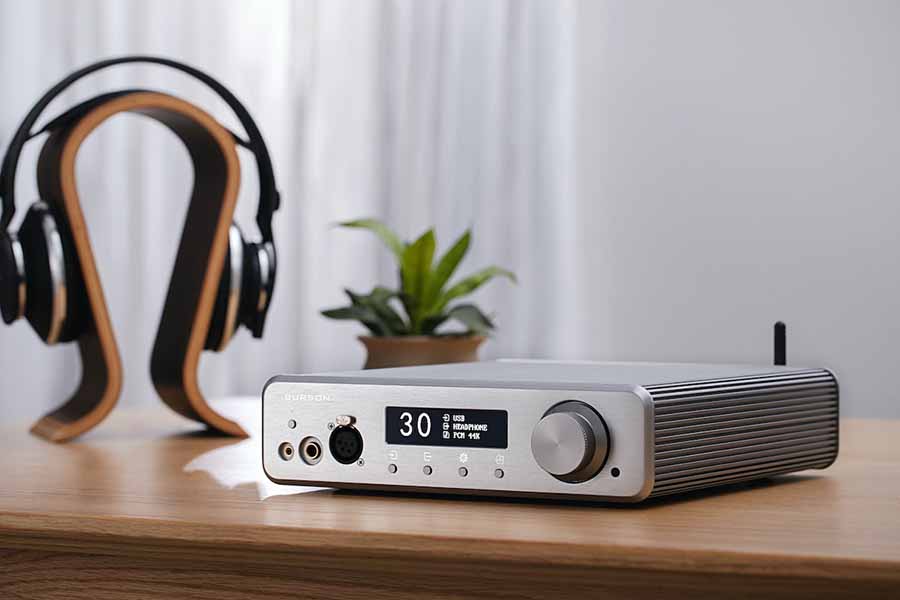

The Burson Conductor is a DAC, Headphone amp and Pre-amplifier in one box.
At the heart of our DAC is the ESS SABRE32 Reference DAC chip with patented 32-bit Hyper-stream DAC architecture and Time Domain Jitter Eliminator technology. The Conductor also features the well reviewed Soloist Headphone Amplifier and a FET output stage Pre-amplifier.
The Conductor features a 24bit/192khz Tenor TE8802 USB receiver working in Asynchronous Transfer Mode. It also accepts coaxial and Toslink inputs supporting 32bit/192khz audio files. On the analogue front, it accepts analogue input via RCA and outputs in 6.35mm headphone jack, line-level output (DAC) and variable output (preamp).
Input impedance: 36.5 KOhms
Frequency response: ± 1 dB 0 – 50Khz
Signal to noise ratio: >96dB
THD: <0.03% at 30ohm with 1W ouput
Channel separation: >73dB
Output power: 4W at 16 Ohms
Input impedance: >8K Ohm @ 30 Ohm, 1W
Output impedance: <1 Ohm @ 30 Ohm, 1W
Power dissipation: >45W, internal, regulated power supply
