Audeze has announced Euclid, their first closed-back planar magnetic in-ear monitor.

Engineered with Audeze’s patented technology inside a precision-milled aluminium housing, Euclid claims to deliver a soundstage and dynamic range “so robust you’ll forget you’re listening to a closed-back in-ear”.

Audeze Euclid Planar Magnetic IEMs

The miniaturised 18mm single planar magnetic driver has no crossovers, resulting in cohesion across the entire frequency spectrum.  Euclid has a 105 dB/mW efficiency and a max SPL well over 120dB.

Audeze Euclid Planar Magnetic IEM have an ergonomic design

Ergonomic Design

Euclid’s small 5mm ear port, contoured design, and light-weight construction work together to create an ergonomic fit suitable to most inner-ear shapes. The braided cable is routed behind the ear for enhanced stability, eliminating the need for ear hooks and improving comfort over extended listening sessions. Euclid comes with three different styles of silicone and foam eartips including SpinFit and Comply models.

Audeze Euclid Planar Magnetic IEMs come with a range of ear tips for a secure fit


Style: In-ear, closed-back

Transducer type: Planar Magnetic

Magnetic structure: Fluxor™ magnet array

Phase management: Fazor™

Magnet type: Neodymium N50

Diaphragm type: Ultra-thin Uniforce™

Transducer size: 18 mm

Maximum SPL: >120dB

Frequency response: 10Hz – 50kHz

THD: <0.1% @ 100 dB SPL

Sensitivity: 105 dB/1mW (at Drum Reference Point)

Impedance: 12 ohms

Max power handling: 500mW

Min recommended power: > 50mW

Wired connection: Braided MMCX

Weight: 15g/pair without cable

Sound port diameter: 5mm

Audeze Euclid Planar Magnetic IEM exploded view


Audeze Euclid Closed-Back Planar Magnetic In-Ear: $1299

Bluetooth and 4.4mm balanced cables expected availability in March

Get all the latest Hifi News with Hifi Pig here!

Gold Note PA-10 Power Amplifier
KEF Introduces Mu3 Earphones Designed By Ross Lovegrove

Read More Posts Like This

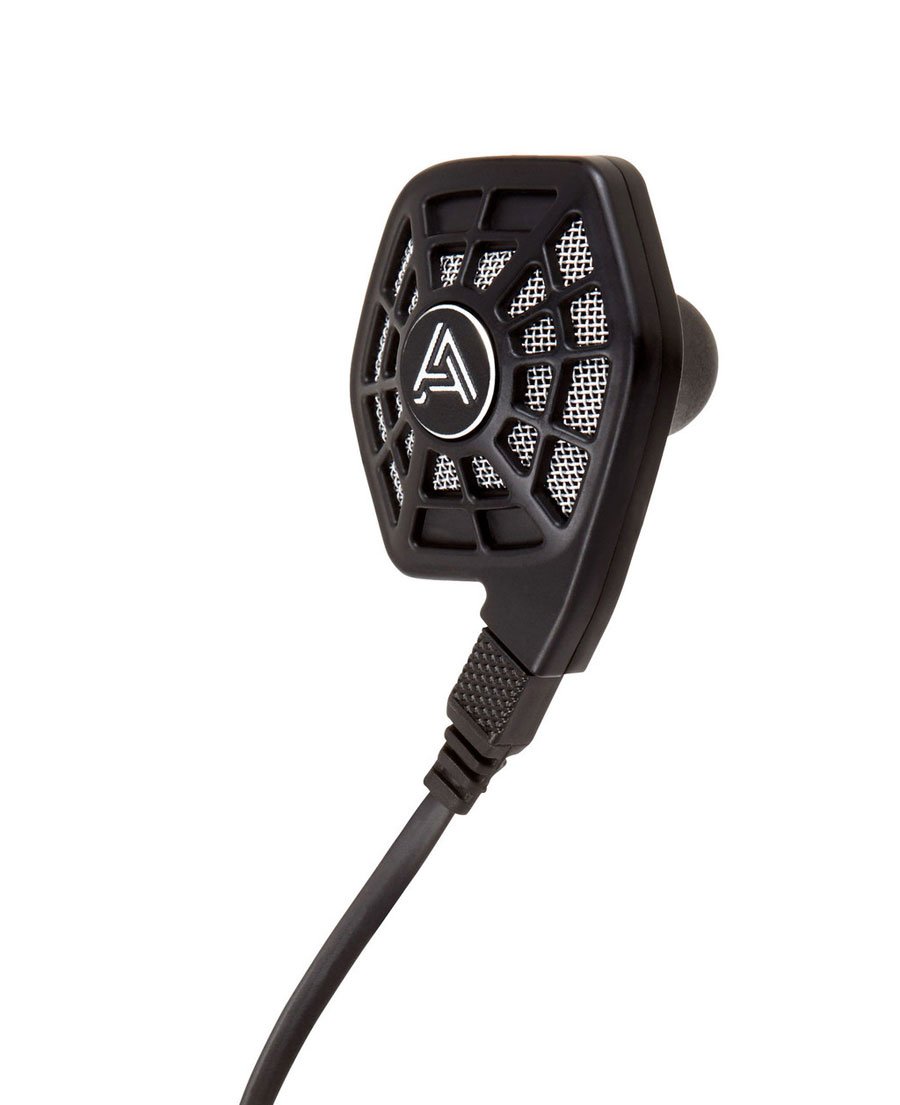

  • Audeze Launch First Planar Magnetic In Ear Monitors

    Audeze have launched the word's smallest planar magnetic headphones, their in ear iSINE range.  Audeze say 'The iSINE 10 sounds and looks like no others, an innovative design without a care for the same old status quo of balanced armature or dynamic driver designs. The Fluxor Magnets and large 30mm planar magnetic diaphragms deliver precise control and fast response times…

  • Audeze adds Black/Steel edition to its iSINE in-ear series. Audeze, an award-winning headphone manufacturer, have announce the newest addition to their highly acclaimed iSINE series of in-ear headphones. Enclosed in a black carrying case, the iSINE10 Black/Steel are designed to evoke pieces of jewellery. These headphones aim to make a “Stand out in the crowd” statement. Read more about the iSINE series here.…

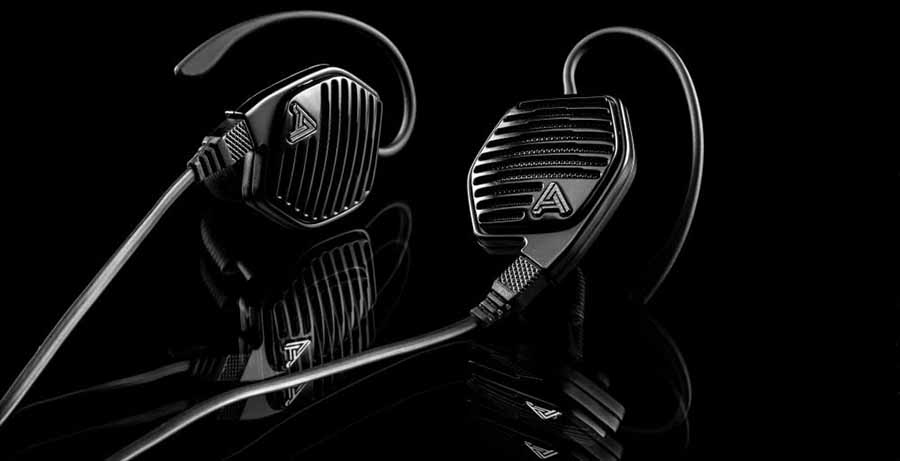

  • Audeze has announced the new LCD-i3, the successor to their iSINE 20 and “little brother” to the LCD-i4, will start shipping today. The LCD-i3 features sonic improvements over the iSINE 20, with Bluetooth, Lightning, and standard 3.5mm connectivity included. The LCD-i3 uses the Magnesium housing and grill design of the LCD-i4. Audeze CIPHER Lightning Cable Included with each LCD-i3 are…
