THE NEW LUXMAN SACD/CD/DAC PLAYER SUPPORTS THE MOST ADVANCED FILE FORMATS

The Luxman D-07X Digital Player supports MQA-CDs, MQA files, 32-bit/768 kHz PCM, 22.4 MHz DSD, conventional USB and Bulk PET file transfer USB sources, all in addition to stereo SACDs and CDs.

LUXMAN D-07X DIGITAL PLAYER

From the company’s flagship D-10X, the new player inherits key technologies including the LxDTM-i disc transport and ROHM MUS-IC BD34301EKV digital-to-analogue converter. The D-07X replaces Luxman’s previous D-06u.

LUXMAN ORIGINAL DISC TRANSPORT MECHANISM-IMPROVED (LXDTM-I)

Dubbed LxDTM-i, the disc drive embodies Luxman’s understanding that exposing the disc transport to vibration and resonance can result in subtle distortion. The LxDTM-i is made in Japan and enclosed in steel top and side plates. For added protection, the physical mounting system forms an integrated structure that supports the side frame. The drive also features an improved disc reading mechanism, a die-cast aluminium disc tray, and left-side mounting that minimizes signal paths.

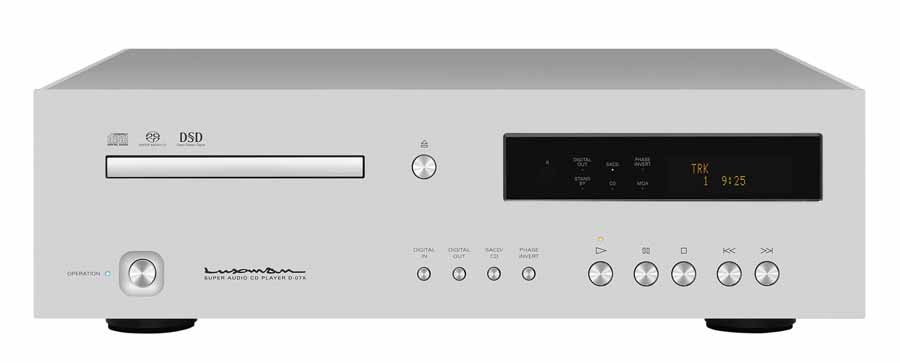

Luxman D-07X Digital Player

A PAIR OF MUS-IC BD34301EKV CONVERTERS

The D-07X is Luxman’s second player to incorporate MUS-IC BD34301EKV digital-to-analogue converters from Japan-based ROHM Semiconductor. The converters reflect 28 separate parameters optimized for sound quality, including aspects of circuit design, layout, photomask, wafer production and IC packaging. For example, to optimize sound quality, selected “bonding” wires that connect the chip to the lead frame are made of copper, while others are made of gold. Using 32-bit ΔΣ (Delta-Sigma) design, the converters achieve a signal-to-noise ratio of -130 dB. The D-07X applies a pair of these converters in dual mono configuration.

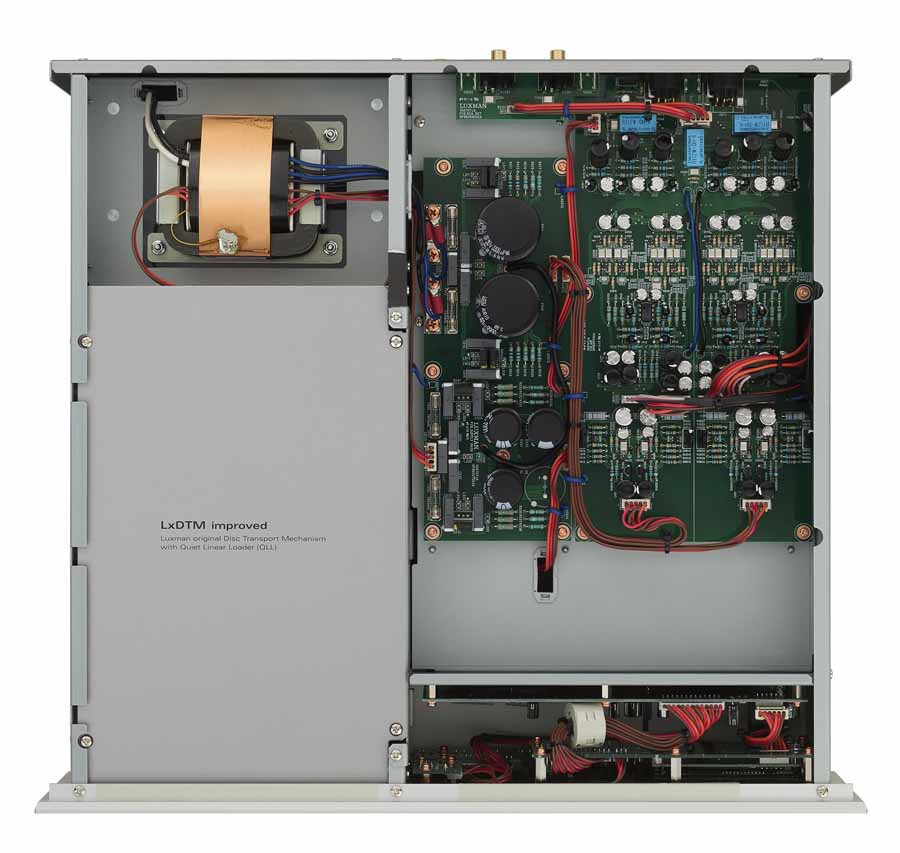

Inside the Luxman D-07X Digital Player

Because a digital player’s master clock can become a source of subtle noise, Luxman’s clocking system incorporates two high-precision, low-jitter, ultra-low phase noise modules. These reduce noise near the oscillation frequency to a minimum.

LUXMAN D-07X SACD, CD AND MQA PLAYBACK

The D-07X plays a selection of file formats via USB inputs and the free LUXMAN Audio Player computer software. Available for Mac OS and Windows PCs, the software decodes WAV, FLAC, MP3, DSF, DSDIFF, ALAC and AIFF files. The USB input accepts PCM signals at up to 768 kHz sampling and up to 32-bit quantizing plus DSD signals at up to 22.4 MHz/1-bit sampling. Coaxial and optical inputs accommodate PCM digital audio up to 192 kHz/24 bits.

The D-07X features Master Quality Authenticated full decoding for MQA files and MQA-CDs. MQA audio files up to 24-bit are supported via USB, optical and coaxial inputs.

BULK PET FILE TRANSFER

In addition to conventional, “isochronous” file transfers at fixed bitrates, the USB input supports two modes of Bulk Pure Enhanced Technology (Bulk Pet) high-resolution audio file transfer. This optimizes data packaging and delivery to the converter, easing the processing load for both the host CPU and the device CPU. This in turn reduces the workload between reading and reproduction, enhancing playback stability and improving sound quality.

LUXMAN D-07X DISCRETE BUFFER ANALOGUE CIRCUIT

Luxman engineers complemented the MUS-IC digital-to-analogue converters with their analogue output circuit. A new current-to-voltage conversion system receives the differential outputs of the paired MUS-IC chips and feeds four discrete, perfectly matched amplifier modules. High-quality buffer circuitry minimizes output impedance, for ideal connection to any integrated amplifier or control amplifier. The D-07X incorporates the low-pass filter into the buffer stage.

OVERSIZED POWER SUPPLY

The oversized power supply features large filter capacitors and an OI-core transformer 50% larger than that of the predecessor D-06u. The chassis is carefully shielded against the degradations of electromagnetic interference.

RESONANCE PROTECTION

Two levels of protection defend against the distortions caused by resonance. On the outside, density gradient cast iron insulator feet diffuse shelf-borne resonance. On the inside, damping countermeasures suppress vibrations generated in the unit itself.

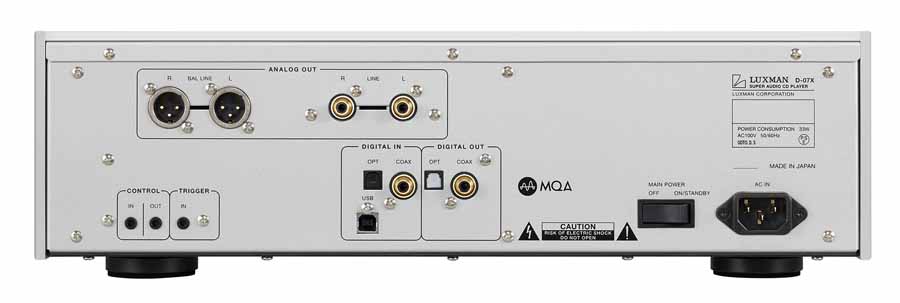

Luxman D-07X Digital Player rear panel

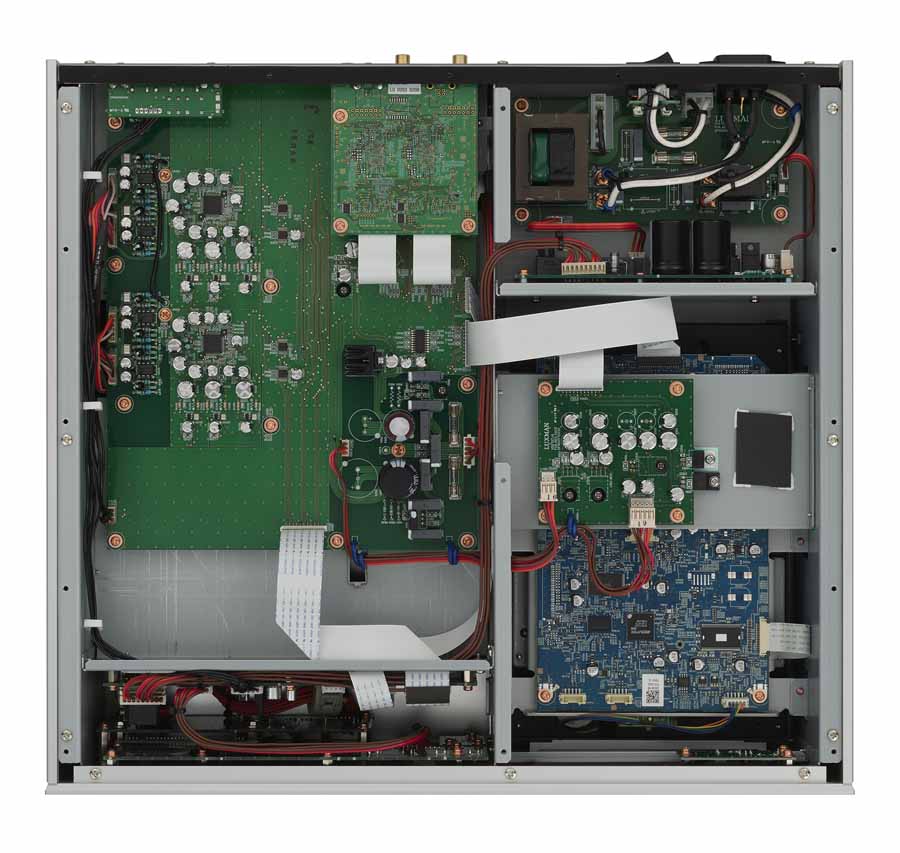

LUXMAN D-07X CIRCUIT BOARDS

The printed circuit boards exhibit Luxman’s signature refinements: gently curved wiring patterns designed to promote signal flow; heavy copper foil signal traces and gold-plated connections to minimize stray capacitance.

The Luxman D-07X disc mechanism

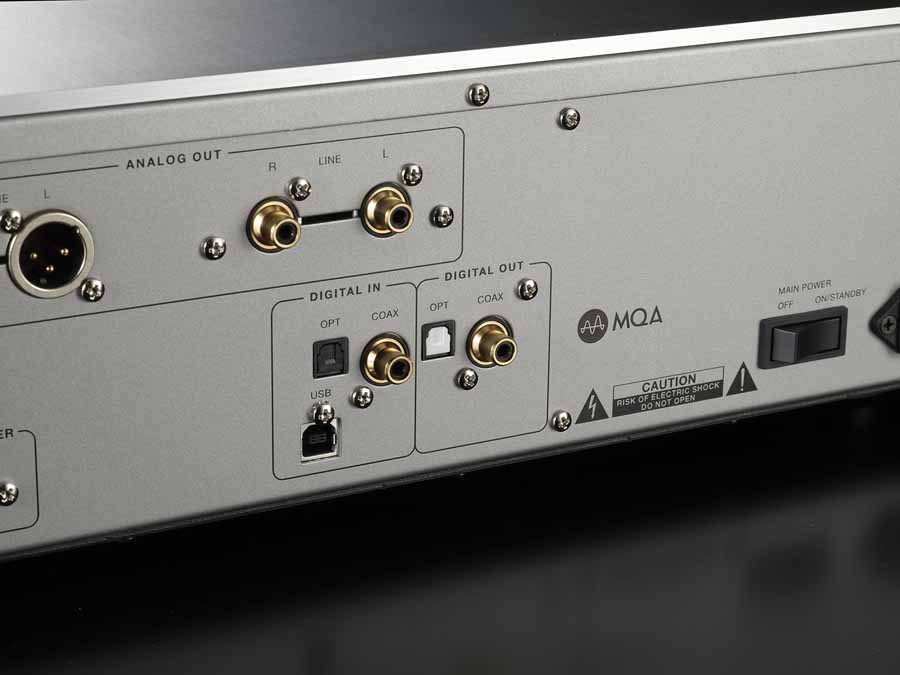

CONNECTIONS

To achieve better support for heavy power cables, Luxman engineers turned the AC inlet 180° from the conventional orientation. For excellent conductivity, the RCA output jacks apply gold plating over brass. Rugged Neutrik terminals provide the balanced XLR outputs while a front panel and a phase Invert button enables listeners to swap polarity.

LUXMAN DESIGN

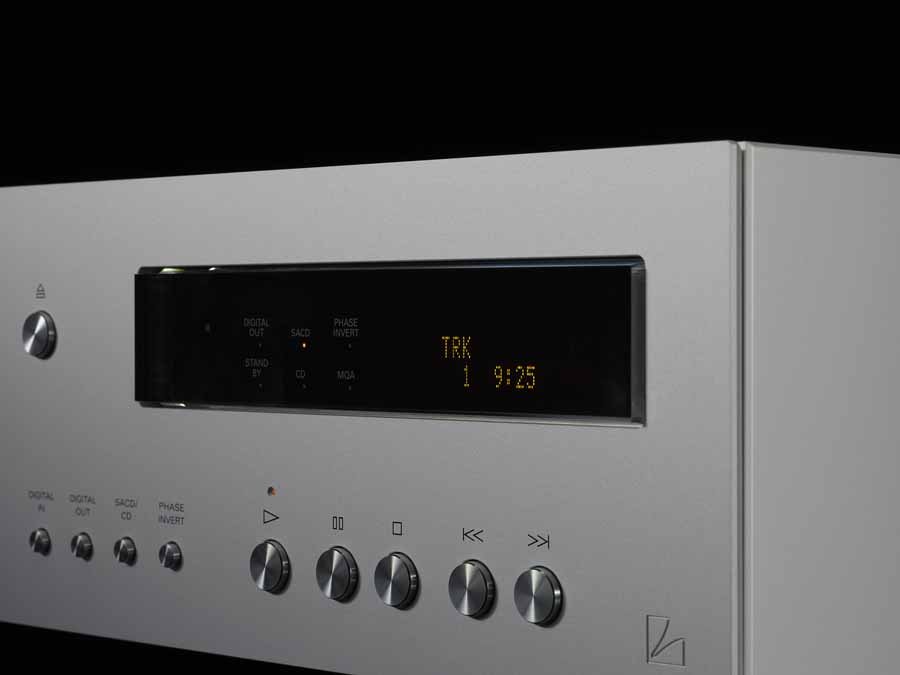

In classic Luxman fashion, the D-07X has a clean, understated design finished in brushed aluminium, which matches the supplied RD-29 aluminium remote control. The front-panel fluorescent display has a selectable 4x zoom mode to facilitate easy reading from the ideal listening position.

Luxman D-07X remote

ABOUT LUXMAN AMERICA

Luxman America, based in Ballston Spa, NY, was founded in 2017 as a subsidiary of Luxman Corporation of Yokohama, Japan. Luxman was among the world’s first consumer electronics companies, founded at the dawn of the radio age in 1925.

LUXMAN D-07X PRICE AND AVAILABILITY

The D-07X is available now in North America at a suggested retail price of $9,995.

HiFi Pig Says: A real ‘Swiss Army Knife’ of a digital player, with the classic, understated, Luxman aesthetic.
