NEW FLAGSHIP INTEGRATED AMPLIFIER FROM LUXMAN

The Luxman L-509Z is the first model to offer LIFES1.0 stages in both preamp and power amp and the first with LECUA-EX volume control.

Luxman continues to prepare for 2025, the company’s centennial, with a new top-of-the-line integrated amplifier, the Luxman L-509Z.

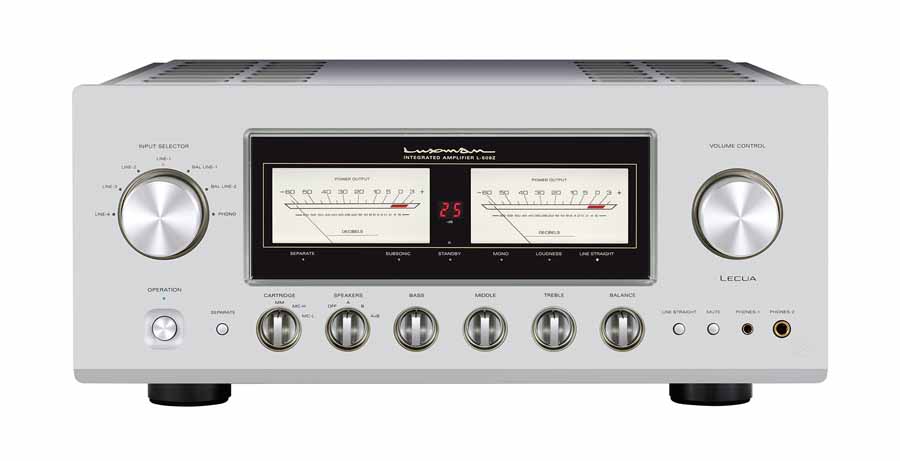

LUXMAN L-509Z INTEGRATED AMPLIFIER

The L-509Z is the first component to incorporate the Luxman Integrated Feedback Engine System (LIFES1.0) in both the power amp and preamp sections. It’s also the first with the Luxman Electronically Controlled Ultimate Attenuator-EX (LECUA-EX).

VU METERS

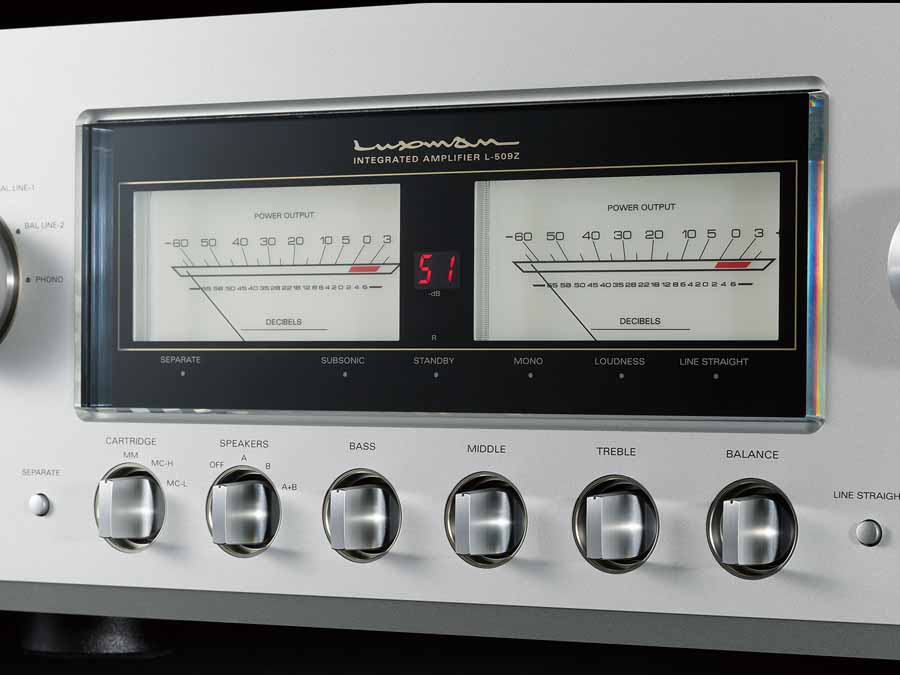

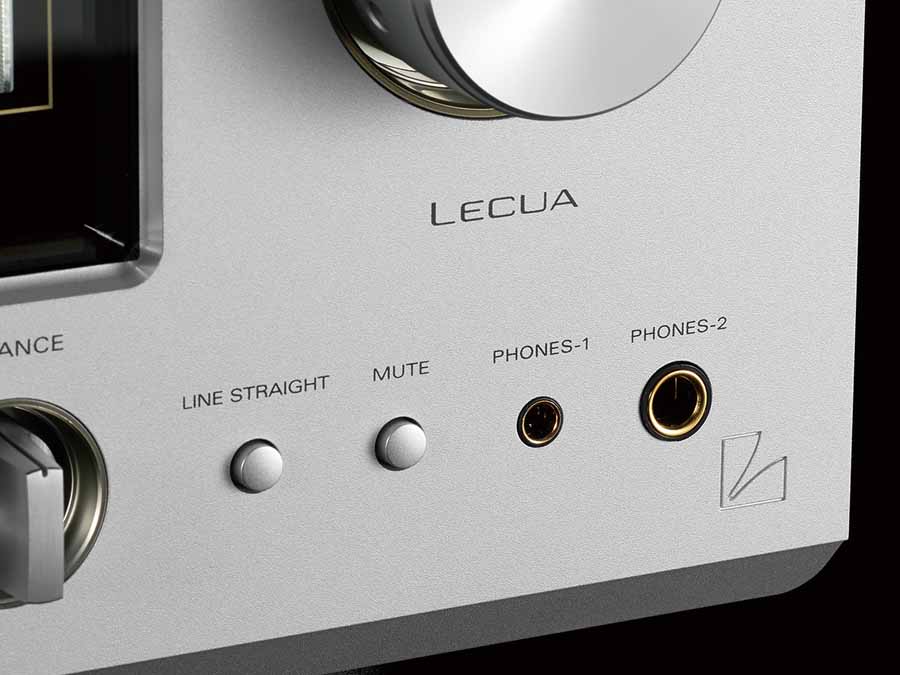

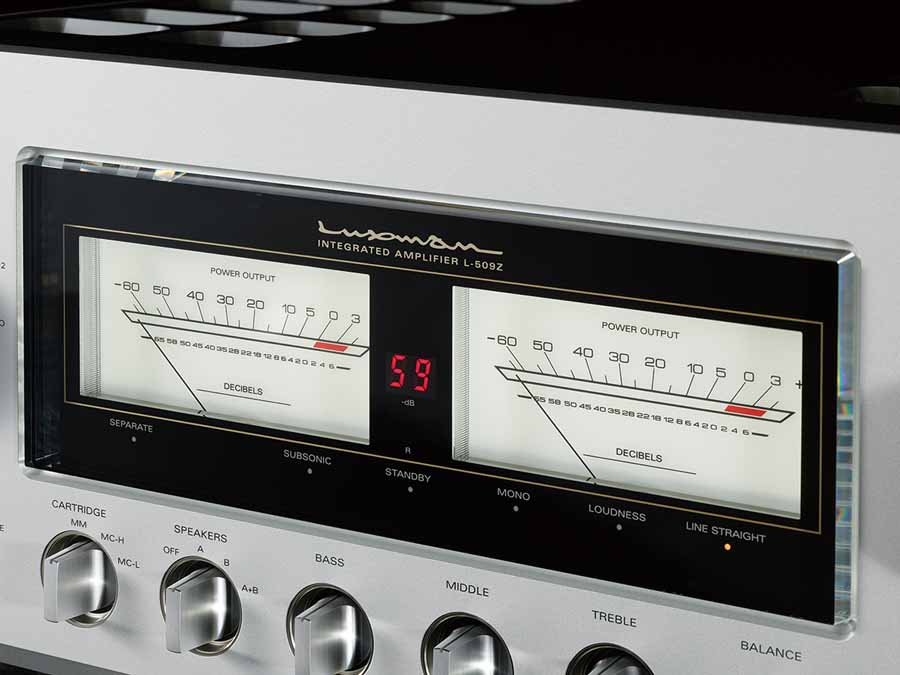

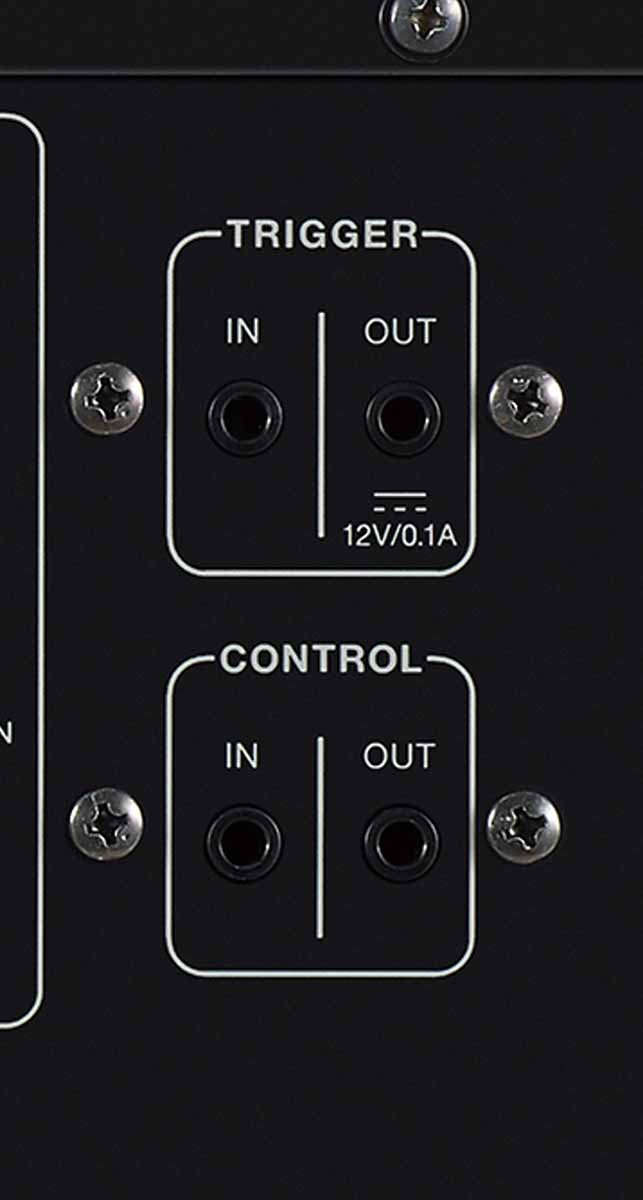

Compared to the predecessor L-509X, the new amplifier also features a precise 7-segment LED display, making it easy to see the volume level from any listening position. Instantaneous output is displayed on large, highly-sensitive VU meters which are illuminated by white LEDs for optimum viewing. The “Pentaconn” 4.4 mm, five-conductor, balanced headphone jack provides independent left/right grounding for improved stereo separation. It supplements the standard 6.3 mm jack. Rear-panel 12-volt trigger input and output accommodate compatible home automation systems. Control input and output terminals coordinate operation with compatible Luxman components. A front panel Mute button complements the remote control Mute. Two preamp outputs and one power amp input enable flexible system configurations including biamping.

LUXMAN L-509Z INTEGRATED AMPLIFIER CHASSIS

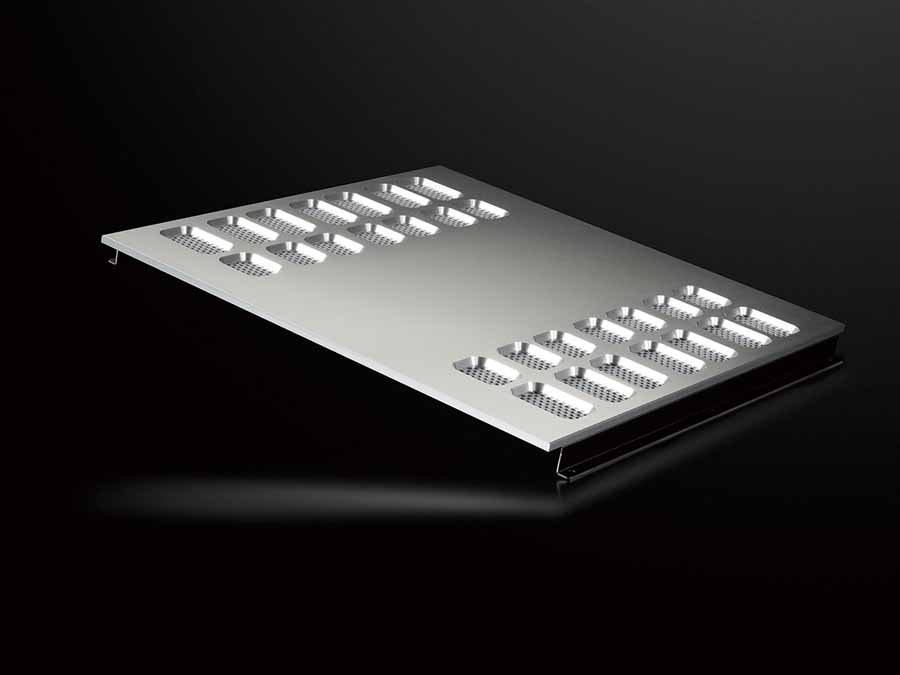

To suppress airborne and shelf-borne vibration that can blur the microdynamics of quiet musical passages, the chassis is very robust with thick aluminium panels and density gradient cast iron feet. Of particular note, the top panel features a classic Luxman hairline finish and 28 individually cut ventilation ports. The amplifier weighs 65 pounds (29.4 kg).

“Integrated amplifiers have been central to Luxman’s identity, at least as far back as 1964, when our SQ-38 became a mainstay of Japanese jazz cafes. Our new flagship honors that tradition, incorporating the essence of our separate preamps and power amps while introducing significant innovations.” Jeff Sigmund, president of Luxman America

REFINED CIRCUIT TOPOLOGY

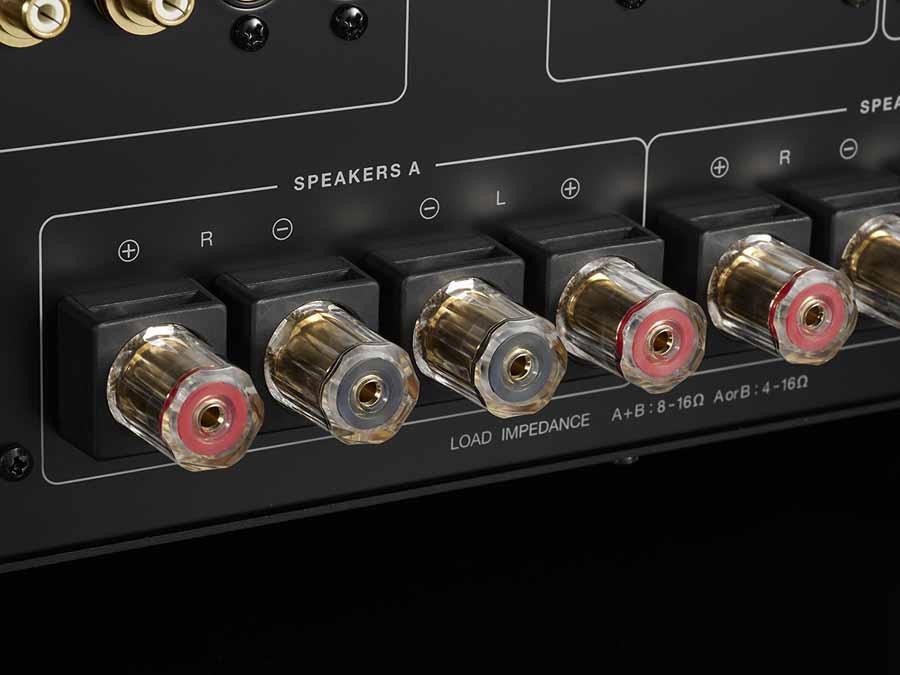

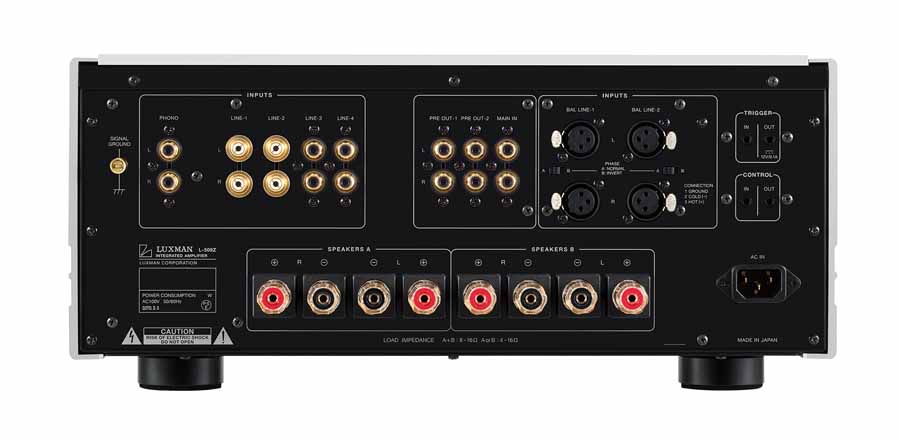

To protect the purity of music reproduction, Luxman engineers gave careful thought to input/output terminals and signal routing. For example, the RCA terminals use a copper alloy that combines the conductivity of copper with the durability of brass. Luxman provides 18- and 20-mm spacing between terminals to accommodate high-grade interconnects. Large, parallel configured speaker relays and ultra-thick 3.5-square-mm cable ensure low impedance transmission. The inline speaker terminals offer ample spacing for thick speaker cables and Y terminators.

To protect the music from interference, beeline topology minimizes internal signal runs. Oxygen-free copper (OFC) wiring is used. The printed circuit boards also reflect Luxman’s thoroughgoing approach: peel-coat boards minimize dielectric effects while round-cornered printed circuit traces are designed to ensure smooth current transmission.

LUXMAN Z SERIES

The L-509Z replaces the L-509X and joins the L-507Z of 2022 in Luxman’s Z Series. Compared to its predecessor, the new integrated amp also offers a new phono preamp with switchable gain to accommodate both low-output and high-output moving coil cartridges. Other upgrades include completely redesigned tone controls with separate bands for bass, midrange, and treble; 12-volt triggers; 7-segment LED volume level display; and front-panel mute switch.

LUXMAN INTEGRATED FEEDBACK ENGINE SYSTEM (LIFES1.0)

The new L509Z is the third component to incorporate LIFES1.0 and the first to have it not only in the power amplifier section but also the preamplifier. The circuit is the latest expression in Luxman’s multi-decade quest to overcome the long-standing tradeoffs in amplifier negative feedback.

Negative feedback has always been a double-edged sword. While feedback plays a central role in reducing distortion, even minuscule inaccuracies in its application can compromise the expressive power of music reproduction. It was to overcome this paradox that Luxman created the Only Distortion Negative Feedback (ODNF) circuit in 1999 and refined it through five generations up to 2021. LIFES1.0 supersedes even these proud achievements, with a completely redesigned circuit featuring improvements in distortion detection, regulation, and thermal stability.

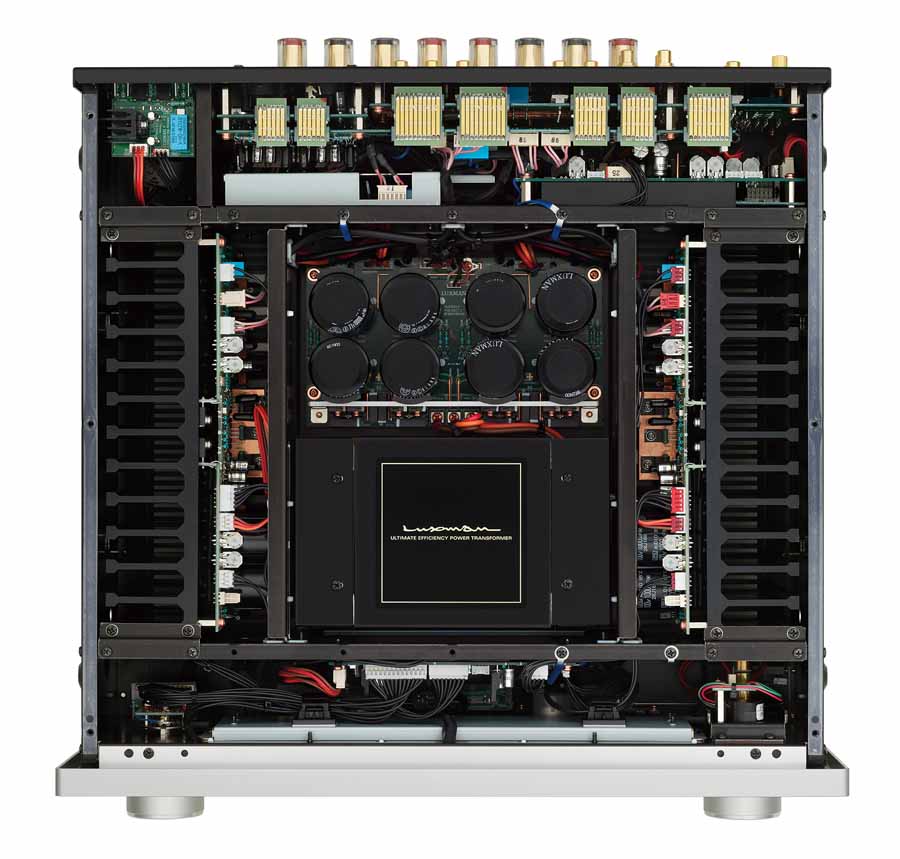

The L-509Z combines high power and linearity, thanks to three stage Darlington bipolar transistors in quadruple-paralleled push-pull configuration. The highly regulated power supply boasts a massive, 600 VA EI-type transformer and an array of eight 10,000 µF filter capacitors. The Class AB output stage is conservatively rated at 120W+120W at 8 ohms and 240W+240W at 4 ohms.

LUXMAN ELECTRONICALLY CONTROLLED ULTIMATE ATTENUATOR-EX (LECUA-EX)

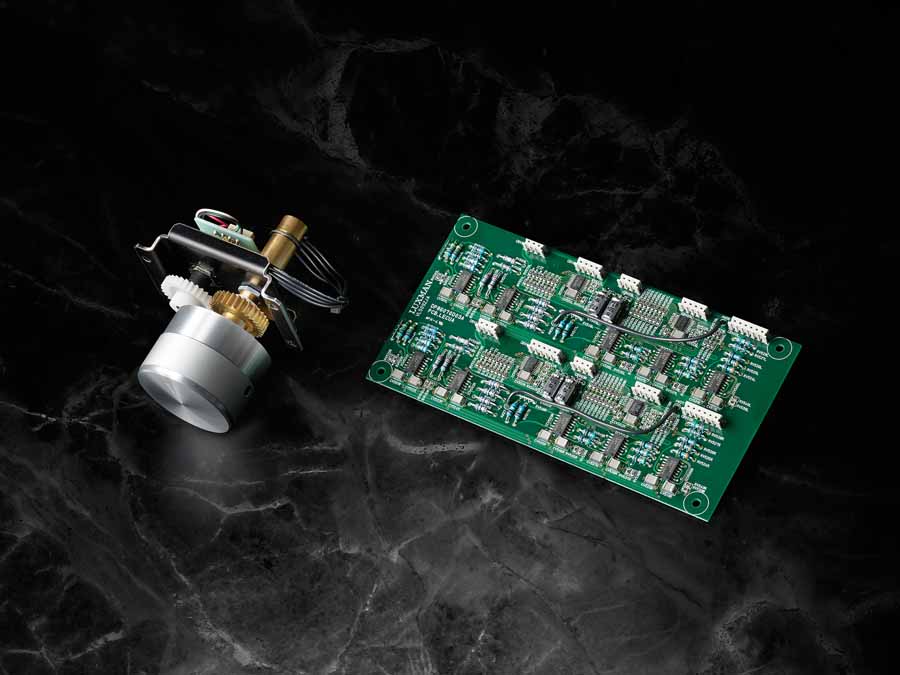

Unassuming and often overlooked, the volume control can be the source of subtle and not-so-subtle sonic degradations. Conventional, variable-resistor volume controls often introduce noise. And left/right tracking errors can unintentionally shift the stereo balance as the user adjusts volume. For these reasons, Luxman has long avoided the variable resistor in favour of carefully crafted attenuator circuits. Premiering on the L-509Z, the LECUA-EX is a computerized precision attenuator. It delivers meticulous volume adjustment across 88 discrete steps while minimizing distortion. The new LECUA-EX enhances the experience with a new rotary encoder, featuring a weighted mechanism to enable smoother adjustment with an immensely satisfying control “feel.”

LUXMAN L-509Z INTEGRATED AMPLIFIER PRICE AND AVAILABILITY

The supplied RA-17A wireless remote control also operates Luxman digital players released after 1996.

The L-509Z integrated amplifier is available immediately in the USA at a suggested retail price of $12,495 USD.

As of January 2024 the Luxman L-509Z is available to order at an RRP of £11,000 inc. VAT. in the UK.

HiFi PiG Says: This new integrated amp has all the qualities that make Luxman so popular, including the iconic VU meters.
