THE PRO-JECT AMP BOX S3 IS A NEW VERY COMPACT STEREO POWER AMPLIFIER

Pro-Ject’s new micro stereo power amplifier the Pro-Ject Amp Box S3 costs under £270 and is super compact.

Pro-Ject says that the Amp Box S3 is an “efficient, yet powerful, compact power amplifier”.

PRO-JECT AMP BOX S3

The Pro-Ject Amp Box S3 has a new PCB concept and sophisticated topology in order to achieve lower distortion and a better signal to noise ratio. Pro-Ject says that this audio-focused internal design is also efficient, with very little wasted energy. By squeezing this technology into a deceptively small footprint, the amplifier is suited to a variety of applications.

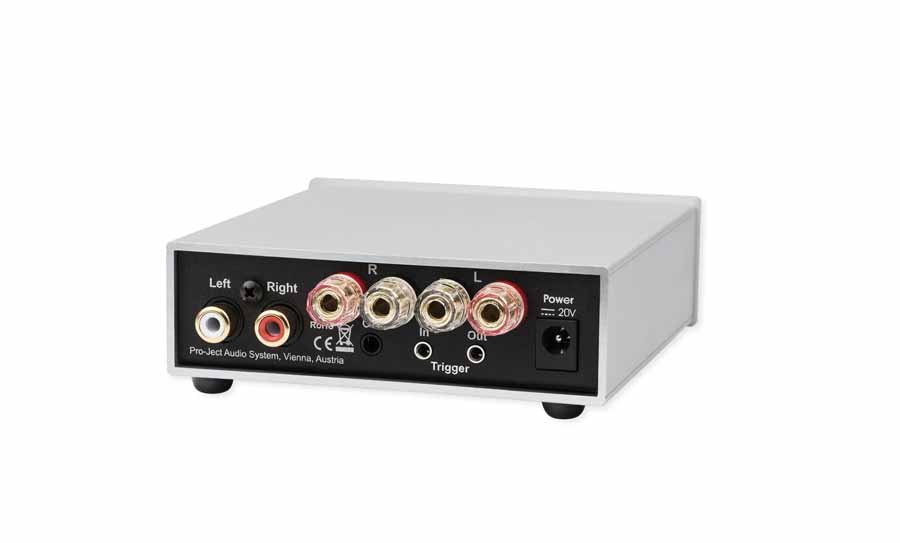

Rear of the Pro-Ject Amp Box S3

BI AND TRI-AMPING

Ideally suited to room sizes up to 15m2, depending on the matched speakers, the Amp Box S3 can be useful for nearfield HiFi systems, powering in-wall or in-ceiling speakers, or enhancing the performance of existing HiFi and home cinema systems. With one stereo RCA input, a jack output, and trigger connections, it’s also possible to stack multiple amplifiers for bi- or tri-amplified systems.

CASEWORK

Sitting on four rubberised feet and contained within a sturdy metal casework that boasts a clean, minimalist elegance for when it’s on show, the Amp Box S3 is designed to protect itself from electronic interference and vibration.

The new Amp Box S3 is designed and produced in Europe and is available in a black and a silver finish.

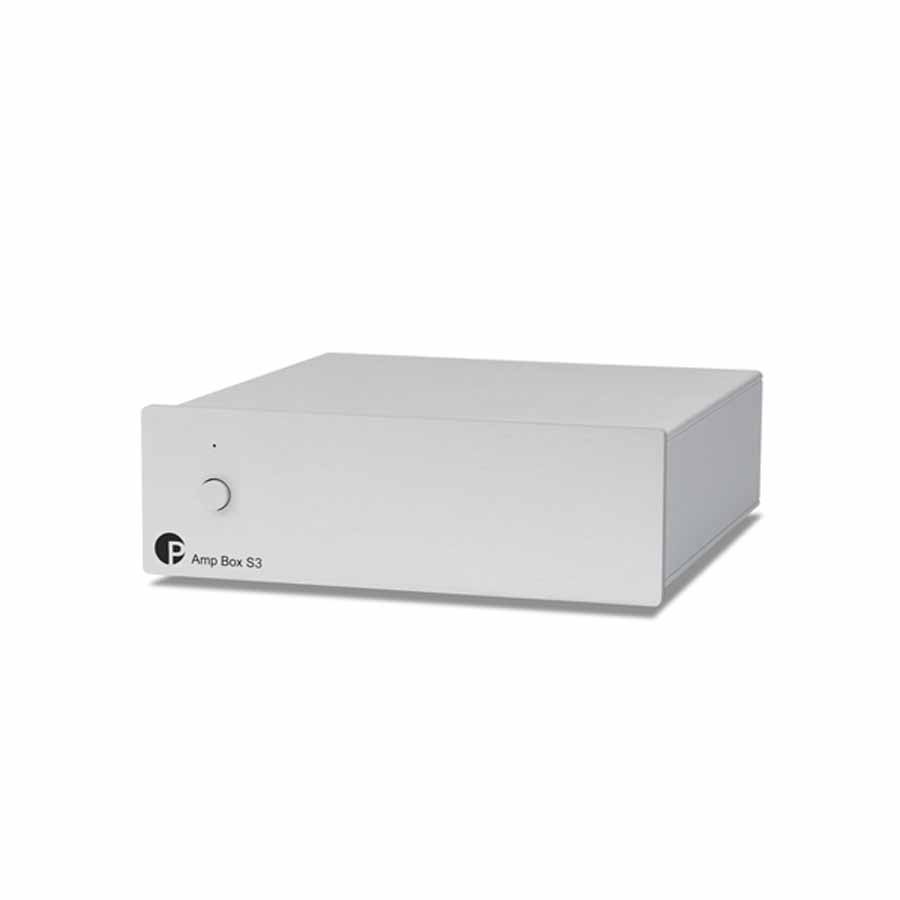

Pro-Ject Amp Box S3 in silver

PRO-JECT AMP BOX S3 TECHNICAL SPECIFICATIONS

Power output 2 x 23 W / 40 W at 8 ohms / 4 ohms

Peak power   2 x 50 W at 4 ohms

Frequency response          20Hz – 20kHz (- 0,7dB / 4 ohms)

Channel separation > -68 dB @ 20kHz

Signal-to-noise ratio 87dBV (100dBV-‚A‘ weighted)/4ohms

THD   < 0,02% @ 10W / 4 ohms

Gain   31 dB

Input   1 pair RCA sockets

Input impedance      25 kohm

Speaker sockets     4mm Ø Banana, spades. pins or bare wire

Trigger 12V DC       In&Out, 2-pole jack socket Ø 2,5mm

Power supply          20V/3A DC (universal power supply)

Dimensions W x H x D       103 x 36 x 118mm

Weight          385g without power supply

Though this picyure probably means nothing to the digital generation, the Pro-Ject Amp Box S3 is no taller then a roll of film

PRO-JECT AMP BOX S3 PRICE

£269 available in the UK through distributor Henley Audio’s network of dealers.

HiFi Pig Says: We are always impressed by the inclusive pricing of these affordable ranges from Pro-Ject, proving that HiFi is not just High End.
