PRO-JECT AUDIO SYSTEMS RELEASES TWO NEW POWER BOXES

The new power box power supplies from Pro-Ject Audio Systems are the Pro-Ject Power Box S3 Phono for your turntable and phono preamp, and the Pro-Ject Power Box DS3 Sources for up to five components and a turntable.

PRO-JECT POWER BOX S3 PHONO

The Pro-Ject Power Box S3 Phonois a new all in one flexible power supply for your phono setup. It’s compatible with all Pro-ject’s 18V Phono Boxes and all 15V DC turntables (except RPM5 and higher, X2 and higher, Signature 10/12). It is designed to provide stable and clean power with a low noise power output, has linear voltage regulation, low ESR capacitors and a rigid aluminium casing.

Pro-Ject Power Box S3 Phono

PRO-JECT TURNTABLES

The Pro-Ject Power Box S3 Phono’s two outputs are specifically engineered to power ProJect turntables and phono preamps. The DC filtration can, says Pro-Ject,  have a dramatic impact on the sound quality. In addition to the sound improvements, Power Box S3 Phono also offers its users a cleaner cable solution avoiding PSU and cable mess.

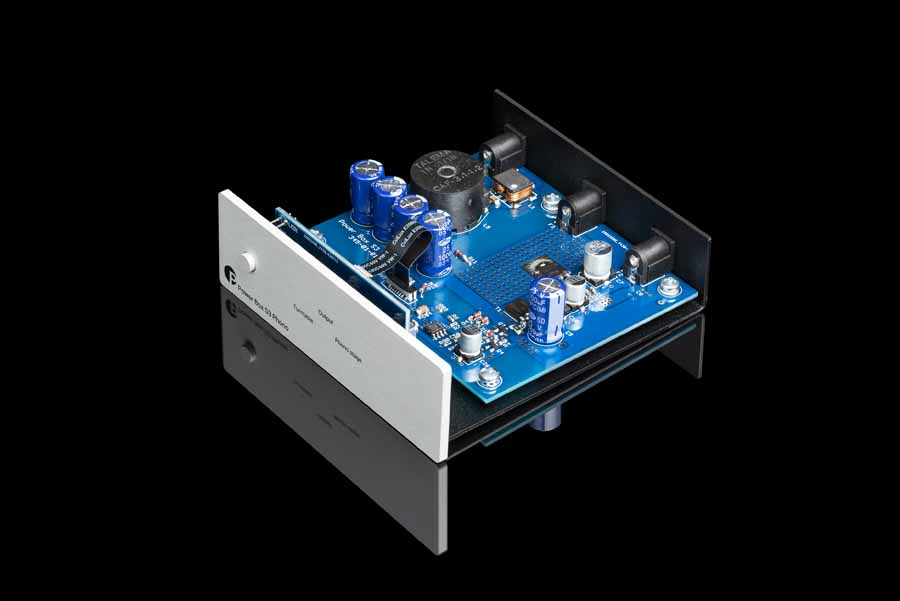

Inside the Pro-Ject Power Box S3 Phono

PRO-JECT POWER BOX S3 PHONO SPECS

Input power supply: 18V / 1000mA

Output voltage/ripple: 1 x 15V ±0,5%

Output voltage/ripple: 1 x 18V ± 0,5%

Output current: both outputs combined max. 1000 mA

Dimension (W x D x H): 103 x 37 x 106 mm

Weight: 370g without power supply

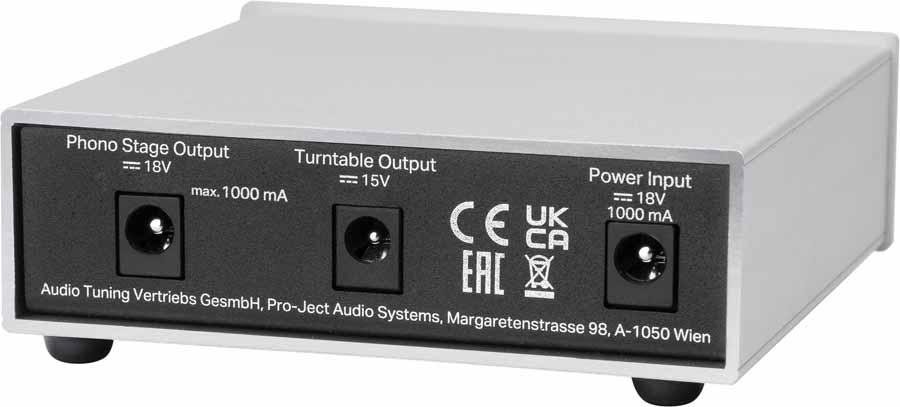

Pro-Ject Power Box S3 Phono rear

PRO-JECT POWER BOX DS3 SOURCES

The Pro-Ject Power Box DS3 Sources is a universal linear power supply for up to five components and one turntable.

It uses a non-switching power supply with a soft start system for no current inrush. It features an audio-type toroidal transformer with copper foil shielding. It has voltage rectification with precise regulation, high filtration capacity (10.000 µF), low ESR capacitors, and low noise components with surge protection. The rigid aluminium casing protects against interference and magnetic wooden side panels are available separately.

Not suitable for integrated and power amplifiers.

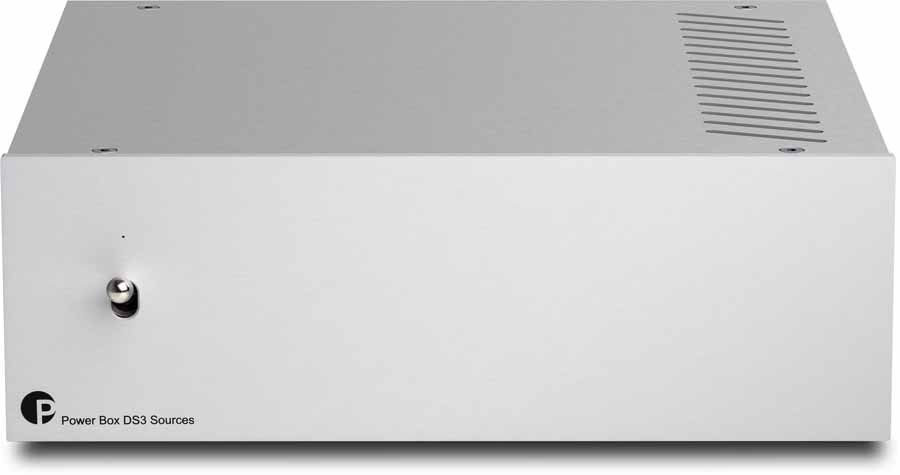

Pro-Ject Power Box DS3 Sources

PRO-JECT POWER BOX DS3 SOURCES SPECS

Input power: 115V/230V AC

Output voltage/current (socket diameter):

2 x 9V / 2A max (1,3mm);

3 x 18V / 1A max (2.5mm);

1 x 15V / DC-turntable (2.1mm)

Filtration capacity: 10.000 μF

Output voltage ripple: < 1mV

Trigger output: 2,5mm jack

Dimensions W x H x D: 206 x 71 x 209 mm (with sockets)

Weight: 3000g

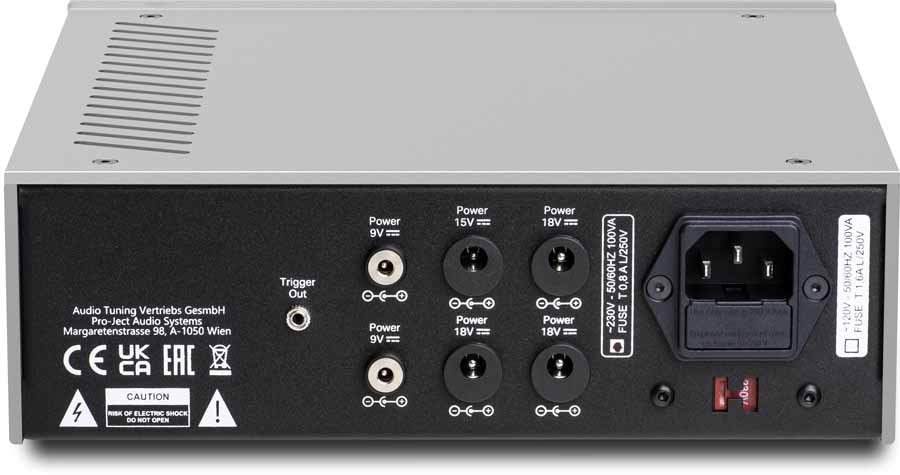

Pro-Ject Power Box DS3 Sources rear

PRO-JECT POWER BOX S3 PHONO  AND POWER BOX DS3 SOURCES PRICE

Both are available in black or silver.

The Power Box S3 Phono hits UK shelves at £159

The Power Box DS3 Sources racks up at £629

Distributed in the UK by Henley Audio

HiFi Pig Says: Pro-Ject consistently delivers useful and affordable products for vinyl fans.
