SILENT ANGEL LAUNCH  STAND-ALONE GENESIS GX WORD CLOCK

Silent Angel Genesis GX Word Clock has been designed to be the ‘ultimate’ audiophile word clock.

The Silent Angel Genesis GX is a word clock whose technology was developed for the most demanding scientific and instrumentation applications, where high-performance clocks can cost tens of thousands of dollars.

SILENT ANGEL GENESIS GX WORD CLOCK

Silent Angel says that the ‘value-engineered’ Genesis GX delivers this level of performance and precision for a fraction of the price.

The Silent Angel Genesis GX Word Clock features four individual Word Clocks, including two 25 MHz units. All four clock units are critically spaced and electrically isolated in their optimised enclosure to eliminate interference and noise. A critically positioned EMI absorber is used to eliminate electrical noise.

Silent Angel Genesis GX Word Clock

FOUR WORD CLOCKS IN ONE UNIT

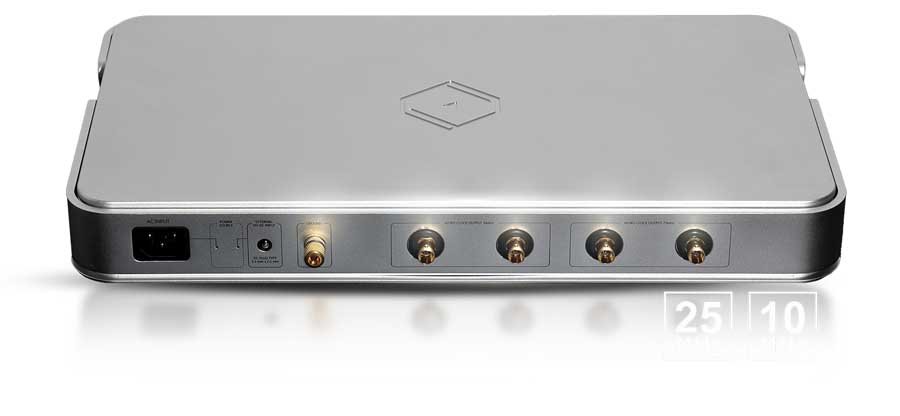

The four independent, 25MHz and 10MHz Word Clocks with gold-plated output connectors are housed in a single, optimized chassis. Each clock unit includes its own TCXO clock and circuitry designed to eliminate potential signal interference.

A Radar-Grade switching power supply module, a technology exclusive to noise-sensitive acoustic equipment, is used to provide a stable, low-ripple-noise power source.

CHASSIS

The chassis design combines of two layers of different, carefully chosen materials: the inner layer is galvanized steel while the outer layer is thick, high-quality aluminium alloy. This construction is designed to maximize shielding and control of eddy currents while damping vibration and noise.

SILENT ANGEL GENESIS GX WORD CLOCK ADVANCED OPTIONS

A 12V DC power jack bypasses Genesis’ internal switching power module, enabling connection to an external linear power supply such as the Silent Angel Forester F2. Genesis GX also matches perfectly with Silent Angel’s “Audio-grade” network switches Bonn NX and N8 Pro.

VIBRATION DAMPING ISOLATORS

Made of solid, high-purity stainless steel, Silent Angel’s Resonance Control Feet are designed to dampen mechanical energy from both internal and external sources, reducing mechanical and electrical noise, static electricity, etc.

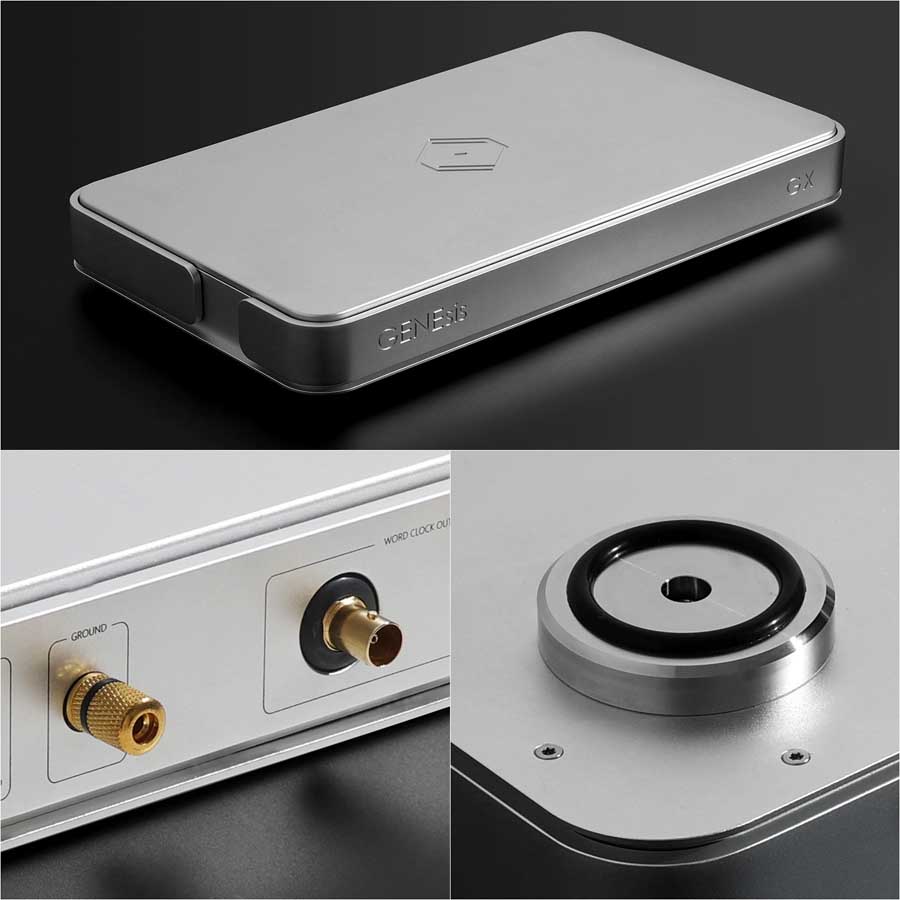

Silent Angel Genesis GX Word Clock chassis details including the damping isolators

25MHZ FREQUENCY

Silent Angel says that 10MHz is the most common Word Clock frequency at the present time; however, this frequency was initially chosen for GPS equipment and not optimized for audio. Silent Angel tells us: “After exhaustive testing, our R&D team discovered that the ideal frequency for audio and networking devices is 25MHz. Silent Angel created Genesis GX with a single goal: to deliver the best audio quality possible. Genesis GX provides both 25MHz and 10MHz word clock outputs”.

Silent Angel say that their TCXO (Temperature Compensation Crystal Oscillator) is more precise and stable than the Crystal Clocks found some products, lowering latency issues and jitter effects.

SILENT ANGEL GENESIS GX WORD CLOCK SPECIFICATION

Available Colours: Black, Silver

Power Input: IEC (AC) 100-240V, 50/60Hz (DC) 12V/1A (5.5mm x 2.5mm connector)

* If both power sources are all connected, the 12V DC power will be used.

Clock Output Port: 25MHz port x 2 (BNC, gold-plated) 10MHz port x 2 (BNC, gold-plated)

Grounding Port: Grounding port x 1 (gold-plated)

LED Indicator: AC Power LED x 1 DC Power LED x 1

Temperature: Operating: 32 ~ 86 °F (0 ~ 30 °C) Storage: -4 ~ 158 °F (-20 ~ 70 °C)

Humidity: Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing)

Dimensions: 17.29 (W) x 2.49 (H) x 9.95 (D) inch 439 (W) x 63 (H) x 250 (D) mm

Weight: 16.31 lbs / 7.4 kg

SILENT ANGEL GENESIS GX WORD CLOCK PRICE

USD $ 3,699

HiFi Pig Says: This is definitely the serious end of digital audio!
