Designed for “high demanding audio systems”, Gold Note’s P-1000 is a Class-A preamplifier born with a completely new proprietary Six Gain Stage design with relays and Optical Encoder volume control.

P-1000 is powered by a Triple Linear Transformer power supply and features 10 independent analogue stereo inputs: 5 balanced XLR + 5 RCA. (digital input available on demand)

The P-1000 belongs to the new era of Gold Note electronics, “combining performance and technology”. The new design allows the user to quickly select any function:

  • Mono/Stereo
  • Left/Right channel swap
  • Absolute phase Swap
  • Over-boost
  • Fine Balance tuning

With its large colour display showing all information, P-1000 becomes the “control point of your stereo system”

Specifications

Dimensions: 430mm L x 130mm H x 365mm D
Total weight: 15 Kg
Frequency response: 2Hz-200kHz @ +/-3dB
THD – Total Harmonic Distortion: <0.001% @ 1kHz
Gain: +20dB – 10V
Signal to Noise ratio: -120dB
Channel Separation: >118dB
Volume: 0.5dB steps
Stereo/Mono: Selectable
Absolute Phase: 0°/180°
Channel Left/Right Swap: Selectable
Overboost: adjustable 3 position (by-passable)

Power

Main supply: 100/115/230V, 50/60Hz, depending on market destination and not convertible
Power supply: Dual Mono Ultra Linear triple transformer (one dedicated transformer for the system functions)
Power consumption: 30W max

Audio input

Analogue: 5 stereo XLR balanced & 5 Stereo RCA unbalanced

Digital (optional): TOS or Coax or USB DSD and PCM 352.8Khz

Input Level: 10Vrms on RCA

Input Impedance: 100Ω

Audio output

XLR balanced

RCA unbalanced

Output Level: 16Vrms on XLR & 8Vrms on RCA max

Output Impedance: <10Ω

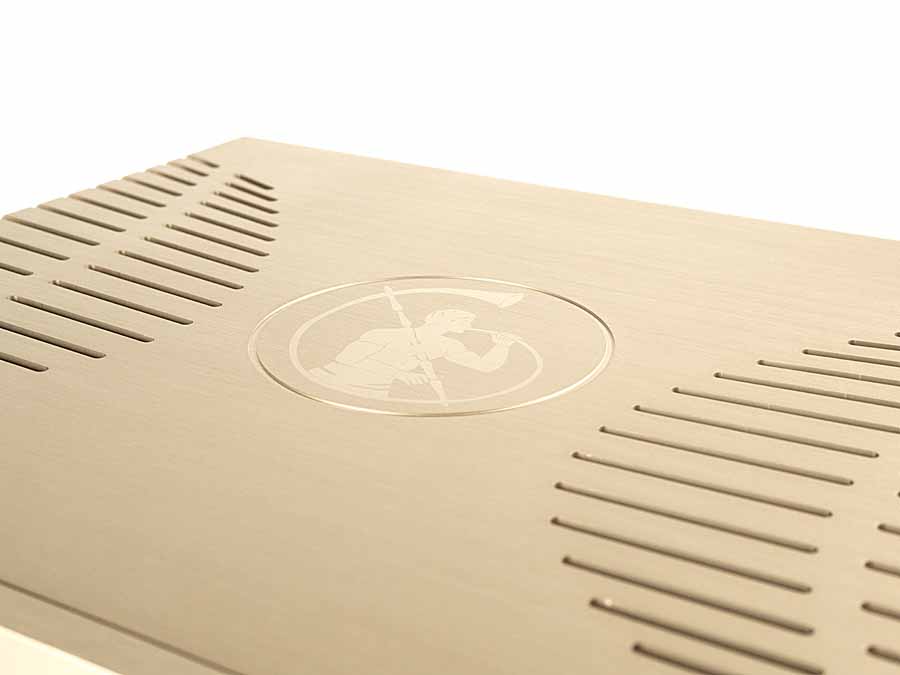

Case

Brushed Aluminium – Black or Silver

Inserts

Italian Walnut | Aluminium – Black or Silver
