The ELAC Concentro S 509 is a distinctively styled loudspeaker, which, at first glance suggests a close resemblance to the smaller Concentro S 507, a direct comparison reveals the major differences.
The shape of the Concentro S 509 seamlessly blends the extravagant design of the large Concentros with the clean lines of the Vela Series. The wraparound baffle is combined with the gently angled cabinet, the trapezoid basic shape and expressive bottom assembly with a “high-heel” effect to create a “powerful yet natural and elegant appearance”. The overall dimensions create a canvass for high-gloss lacquer and elegant real wood veneer finishes.
Drivers
The acoustic centerpiece of the Concentro S 509 is the stepX-JET: a concentric chassis comprising the new JET 5c tweeter and a midrange driver with an aluminum membrane. Patented technology uses exchangeable DRCs (Directivity Control Rings) to tailor the directional characteristics in the mid-frequency range to conditions in the listening room. The different DCRs (three aluminum DCRs are included as standard) are used to optimize the relationship between direct and diffuse sound in the listening zone.
The stepX-JET is supported by a front-mounted low/midrange unit that employs AS-XR technology. Four powerful side-firing, long-throw woofers with a diameter of 180 mm ensure bass performance. The special ICD configuration (Impulse Compensated Design) gives bass reproduction free of any coloration due to unwanted mechanical vibrations.
Price And Availability
The Concentro S 509 is available in high-gloss lacquer finishes (black and white) now at a suggested retail price of 16000€ per pair, and, by the end of June, in high gloss walnut veneer at 17000€
Technical Specifications Concentro S 509
Height 1320 mm with Spikes/ Washer
Width 325 mm with Spikes/ Washer
Depth 460 mm with Spikes/ Washer
Weight 42,8 kg
Type 4-Way, bass refl ex
Woofer 4 x 180 mm Ø, AS cone
Low-Midrange 1 x 180 mm Ø, AS-XR cone
High-Midrange 1 x 50 | 130 mm, Ø AL cone
Tweeter 1 x JET 5c
Crossover frequency 120 | 400 | 2600 Hz
Nominal power handling 280 W
Minimal impedance 3,2 Ω bei 360 Hz
Peak power handling 340 W
Frequency range (IEC 268-5) 22 – 50000 Hz
Sensitivity 88 dB / 2,83 V/m
Suitable for amplifi ers from … to 4 – 8 Ω
Nominal impedance 4 Ω
Recommended amplifier power 60 – 600 W/channel
Finishes Black High Gloss, White High Gloss, Walnut High Gloss
Accessories included in delivery Bi-Wiring-Set, Gloves, Spike-Set, Washers
Get all the latest Hifi News with Hifi Pig here!
Read More Posts Like This
-
The DALI Oberon series is there latest and more affordable range of loudspeakers and DALI say it “combines all of the wisdom we have gathered over the last 35 years”.…
-
Prague based Xavian, who have been manufacturing speakers for nearly twenty-one years, have launched Perla Esclusiva, the successor to their compact loudspeaker Perla, which was launched in 2015. Xavian say…
-

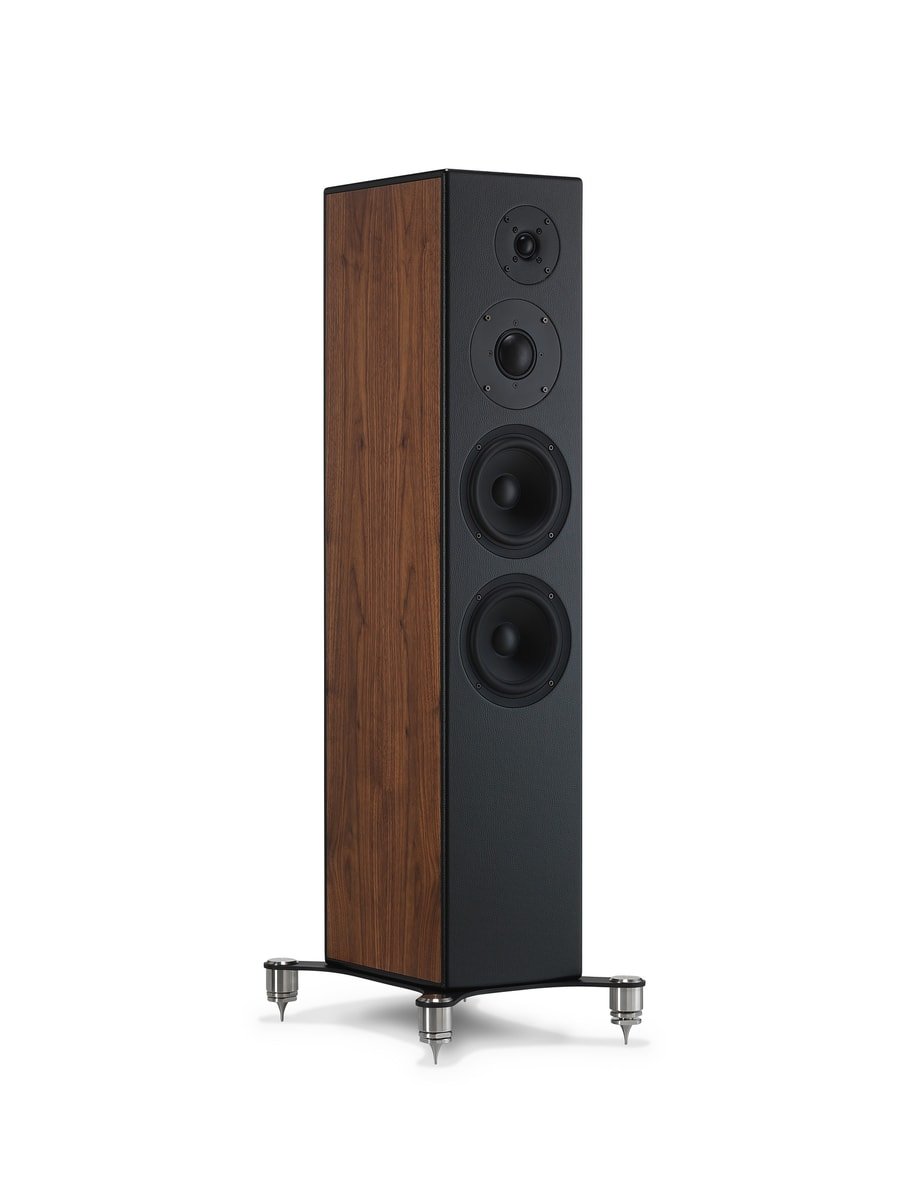

Falcon Acoustics have launched their R.A.M. Studio series speakers. Falcon are known for hand-building the LS3/5a monitor to the original BBC spec, alongside its new Reference Audio Monitor (R.A.M.) range.…
