The first of a new range of affordable audio components, iFi’s ZEN Blue delivers hi-res Bluetooth streaming to any audio system for £129.

iFi kicks off a new range of desktop-sized audio products with the ZEN Blue, which they claim is the world’s first Bluetooth receiver supporting all the latest hi-res codecs for hi-res streaming from smartphones, tablets, PCs and Macs to any audio system.

Qualcomm QCC5100 Chip

The ZEN Blue has a sturdy aluminium enclosure, within this is a Qualcomm QCC5100 chip to process the incoming data. All the latest hi-res Bluetooth audio formats are supported, including Qualcomm’s aptX Adaptive, aptX HD, Sony’s LDAC and Huawei’s HWA. Other supported codecs include regular aptX, aptX Low Latency (for synching sound with visual media), AAC (the favoured format of iOS devices) and SBC (the ‘plain vanilla’ Bluetooth codec). This means that every possible source device is covered, at the highest resolution its Bluetooth audio specification will allow.

The Qualcomm QCC5100 offers a ‘system-on-a-chip’ Bluetooth solution, with all functions covered including D-to-A conversion. The ZEN Blue has separate digital and analogue stages; to feed the analogue stage, the processed digital signal is routed from the QCC5100 to a specialised DAC chip from ESS Technology’s Sabre family to convert the signal from digital to analogue. One of the key advantages of the ESS Sabre DAC chip is its Hyperstream architecture with integrated Time Domain Jitter Eliminator.

John Curl Circuit Design

This is the first iFi product to benefit from the input of legendary audio designer John Curl, who has teamed up with the iFi electronics design team, led by Technical Director Thorsten Loesch, to ensure the circuit design of every product is fully optimised.

The ZEN Blue’s analogue output stage is a balanced design. It incorporates a range of high-quality circuit components, carefully selected for their performance in an audio context, including professional-grade balanced line drivers, C0G capacitors from TDK and a precision low-noise power supply IC from Texas Instruments.

Bluetooth Reception

The ZEN Blue adds high-quality Bluetooth reception to any audio system via analogue or digital cable connections. A switch at the back dictates how the digital signal is routed; either through the DAC and analogue output stage, or directly to the digital outputs. On the analogue side, RCA stereo outputs allow connection to amplifiers, active speakers and the like, while a 4.4mm Pentaconn output enables balanced signal transfer to amps/speakers equipped with a balanced input – either a 4.4mm input, or XLR inputs via a 4.4mm-to-XLR cable.

For digital connections, optical and coaxial outputs are provided – these allow connection to anything with a built-in DAC and corresponding digital input, such as an AV amp or an external hi-fi DAC. The ZEN Blue ‘remembers’ up to seven paired Bluetooth source devices, making it easy to switch from one device to another, with wide reception range thanks to the latest Bluetooth 5 specification. The DAC stage handles sample rates well in excess of the maximum supported by the best hi-res Bluetooth formats – of the current 24-bit-capable codecs, aptX HD’s specification tops out at 48kHz, while LDAC and HWA support up to 96kHz.

The LED at the centre of the ZEN Blue’s front panel changes colour to identify the Bluetooth codec being received, while another LED to the right indicates the sample rate. Qualcomm’s QCC5100 chip can be updated over-the-air, enabling future Bluetooth codecs to be added to the ZEN Blue’s specification.

ZEN DAC

Available from October at an RRP of £129, the ZEN Blue hi-res Bluetooth streamer is the first of a range of ZEN Series products, all sharing the same 158x35x100mm (WxHxD) aluminium case. It will be followed swiftly by the ZEN DAC, which swaps Bluetooth reception for a USB input and adds an integrated headphone amp. Further ZEN Series products are set to arrive in the coming months.

Get all the latest Hifi News with Hifi Pig here!



Read More Posts Like This

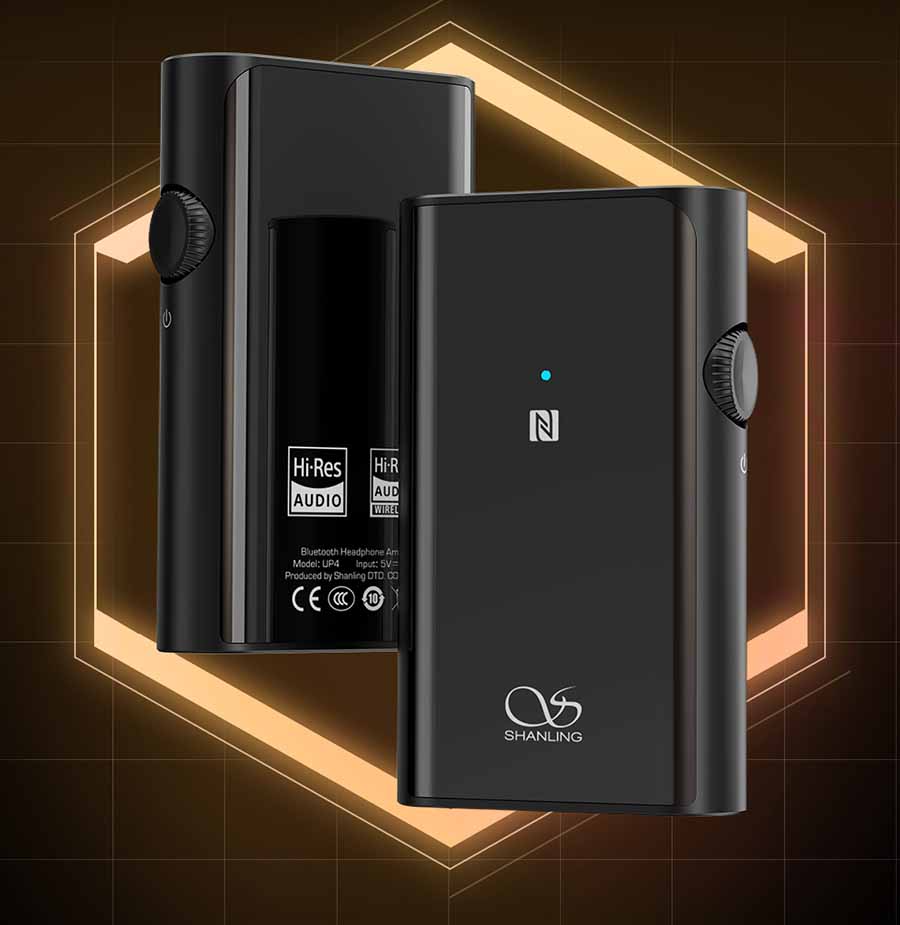

  • Founded in 1988, Shenshen and Dongguang based Shanling Audio has been designing and manufacturing a range of Hifi products for over 30 years and are being well known for their valve-based products. Shanling Audio expanded into the portable audio market in 2014 with Shanling M3, their first Hi-Res portable music player. Nowadays, Shanling offers a wide range of portable products,…
