THE NEW LORENZO AUDIO LABS LM3 LOUDSPEAKER

Lorenzo Audio Labs LM3 is the new two-way loudspeaker from the High End Spanish HiFi brand.

Spanish HiFi brand Lorenzo Audio Labs from Ganada has designed their new Lorenzo Audio Labs LM3 as a two-way speaker design that “pushes the limits of a standard 2-way setup using the best drivers, an innovative crossover design, premium components, and an in-depth study of energy and its control”.

LORENZO AUDIO LABS LM3 LOUDSPEAKER

Miguel Lorenzo Castro of the brand tells us that the Lorenzo Audio Labs LM3 is a “very versatile loudspeaker, capable of adapting to different spaces, large, medium and small, thanks to its powerful top-quality drivers that offer a relaxed and emotional sound”.

Lorenzo Audio Labs LM3 Loudspeaker

TWO WAY LOUDSPEAKER

The LM3 is manufactured in two pieces separately, the monitor itself and the stand, but they are joined together and presented as a single unit. The speaker is made with a solid cabinet, 41mm thickness, manufactured with phenolic laminated wood. It has dual down firing bass-reflex ports.

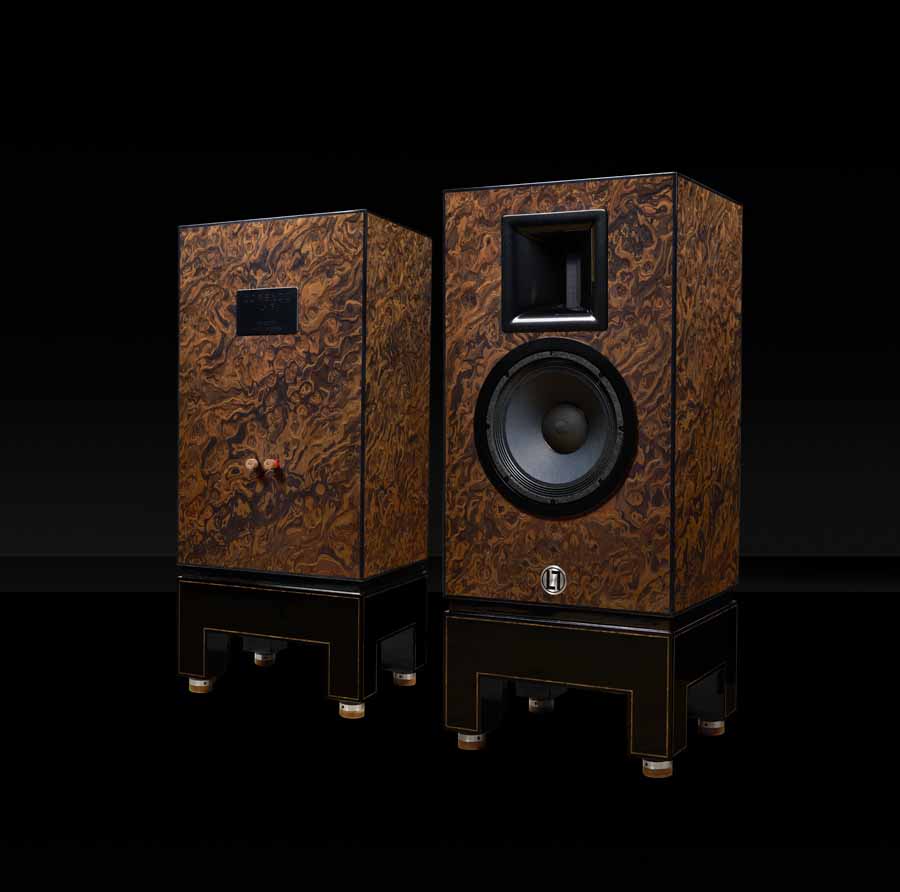

Rear and front of the Lorenzo Audio Labs LM3 Loudspeaker

CABINETS

The cabinet and horn tweeter are made with 5-axis CNC machinery. The cabinets are covered with natural wood veneer, rigorously selected for its beauty and durability, and 100% handcrafted by a fourth-generation craftsman whose family has worked since 1888 with traditional techniques.

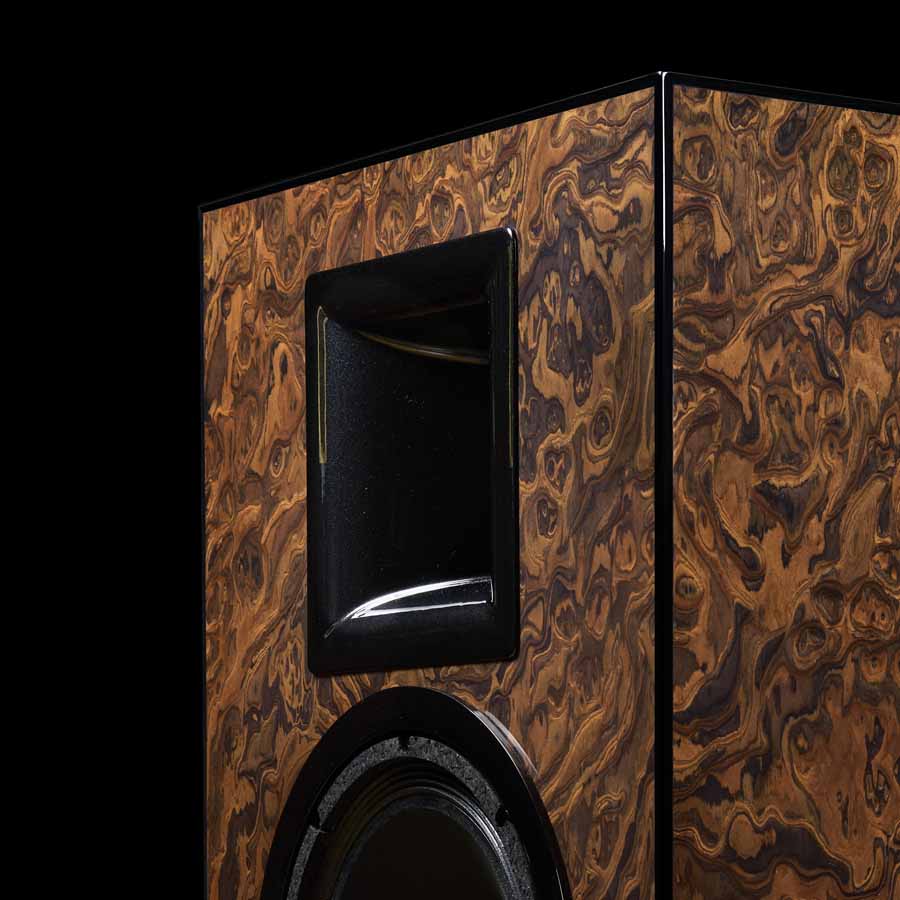

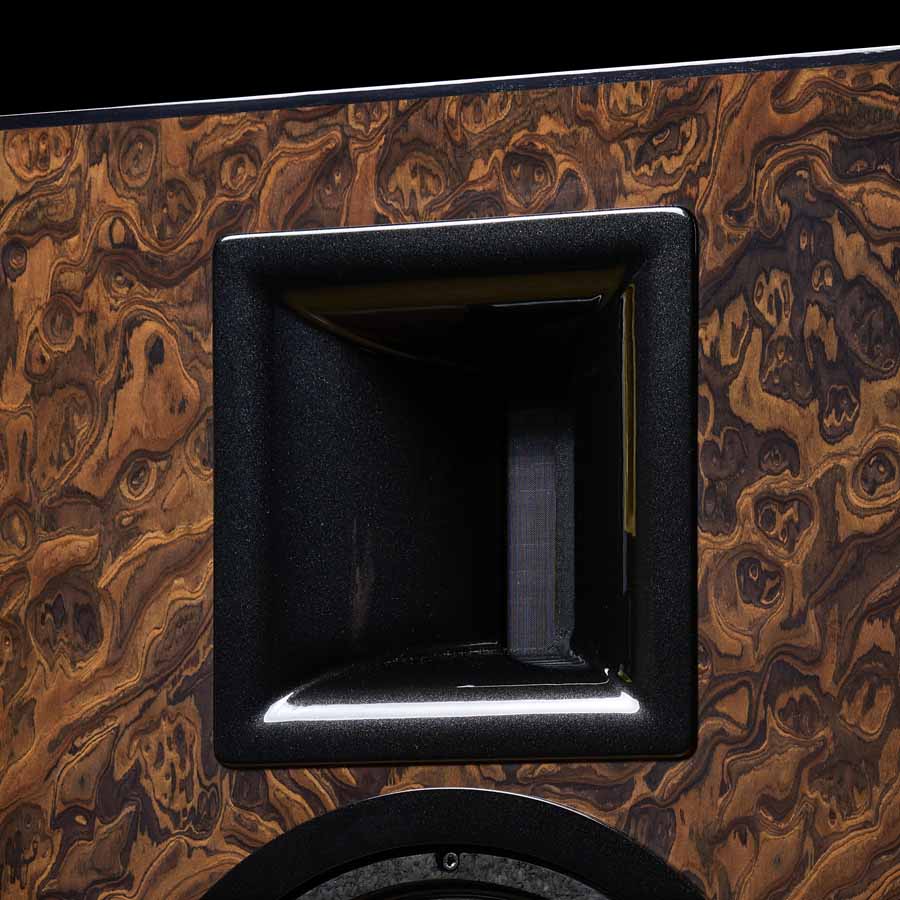

Horn tweeter

The solid steel feet are designed in-house, with a lower piece from Panzerholz to remove vibrations that come from the floor.Other wood finishes are possible on request.

Lorenzo Audio Labs LM3 Loudspeaker stands

DRIVERS

The speaker features drivers using paper cones with alnico magnets in the woofers and AMT horn tweeters. The crossover is a hand-welded passive crossover without printed circuits boards featuring high grade components from Mundorf, Jantzen and Pathaudio.

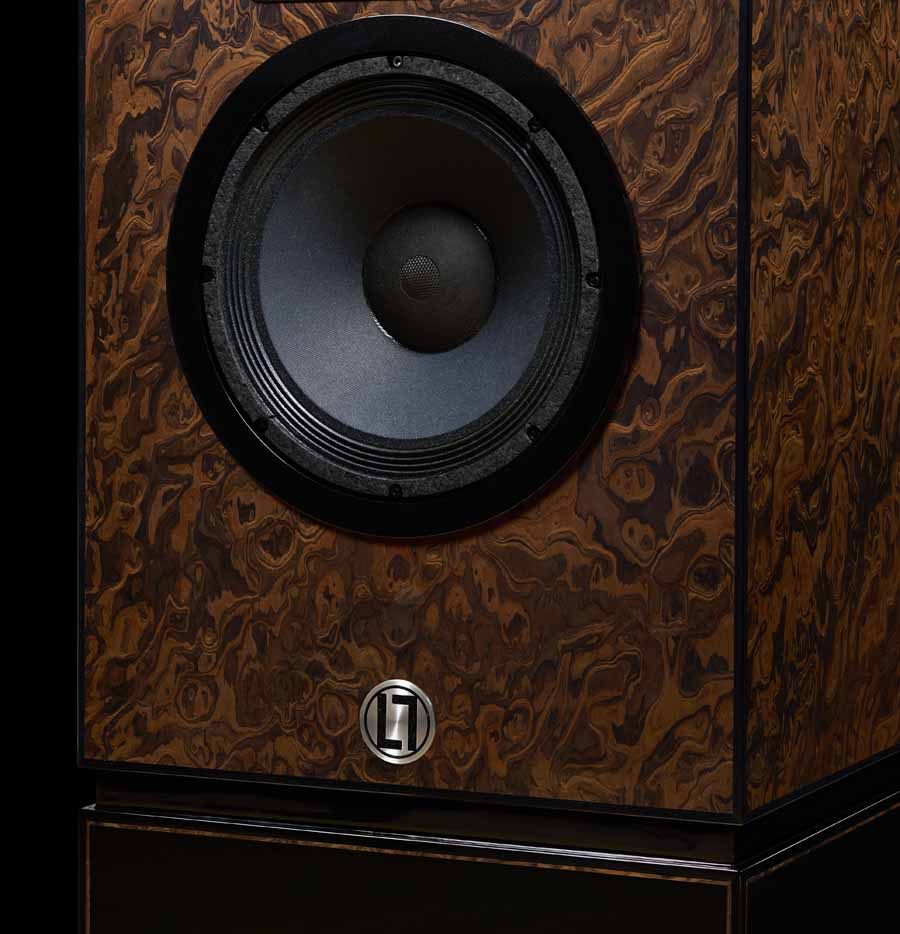

Lorenzo Audio Labs LM3 Loudspeaker drivers

LORENZO AUDIO LABS LM3 SPECIFICATIONS

2-way-system with phase-optimized crossover.

Drivers: Woofer 12 inches, AMT Tweeter

Sensitivity: 94 dB.

Nominal Impedance: 8 Ohm.

Enclosure Type Woofer: Double down-firing bass reflex ports.

Frequency response: 25 Hz to 23 kHz.

Recommended amplifier: 20 to 300 Watts.

Dimensions: Height 46,06 inches (117 cm), Width 20,28 inches (51,5 cm), Depth 16,34 inches (41,5 cm).

Net Weight: 100 lbs (45 kg) each.

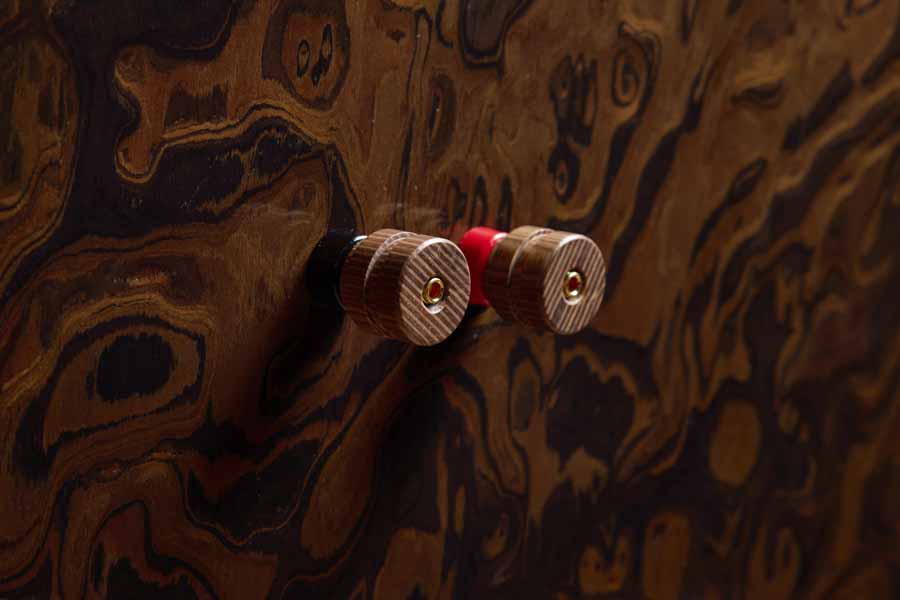

Lorenzo Audio Labs LM3 Loudspeaker binding posts

HIGH END MUNICH 2023

The world premiere of the LM3 new model will be at the Munich High End Show 2023, Hall 2 G04.

LORENZO AUDIO LABS LM3 PRICE

The price of the LM3 model is 55,000€.

HiFi Pig Says: Having seen and heard the Lorenzo Audio Labs speakers we can say they really are made with incredible craftsmanship, looking forward to hearing these new ones at Munich!
