HIGH END VIETNAMESE HIFI BRAND THIVANLABS RELEASE NEW AMPLIFIERS

ThivanLabs of Vietnam has released three new valve amplifiers in their new generation collection.

ThivanLabs Flamingo 300B, Magpie 811 And Robin DL50 Valve Amps

The ThivanLabs Flamingo 300B, Magpie 811, and Robin DL50 are a trio of new-generation tube amps released by Thivanlabs. ThivanLabs says that each model offers a distinct sonic personality. This amplifier trio includes a feature of choosing sound modes between high dynamic and standard dynamic with a switch integrated into the front of the amp.

ThivanLabs Flamingo 300B, Magpie 811 And Robin DL50 Valve Amps

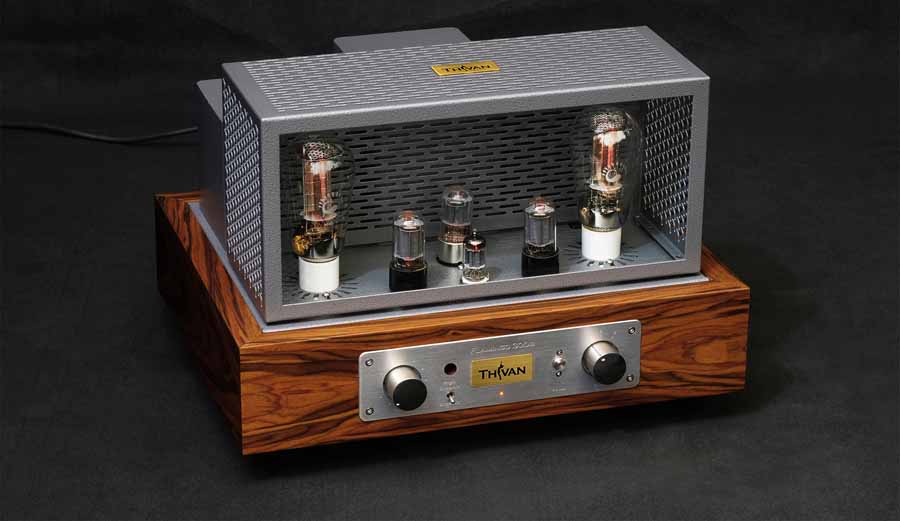

ThivanLabs Flamingo 300B amp

THIVANLABS

All ThivanLabs tube amplifiers are assembled entirely by point-to-point method with strict quality control. All tubes/valves are designed to operate in autobias, and a new glass-faced tube cage makes it possible to see the tubes without having to remove the cage.

ThivanLabs told us that one of their main strengths of their tube amps is “the complete use of output transformers (OPT) engineered by OLS technology researched, developed and manufactured by ThivanLabs”. OLS technology is the optimization of the ratio of insulating materials and winding layers of the transformer.

ThivanLabs Flamingo 300B, Magpie 811 And Robin DL50 Valve Amps

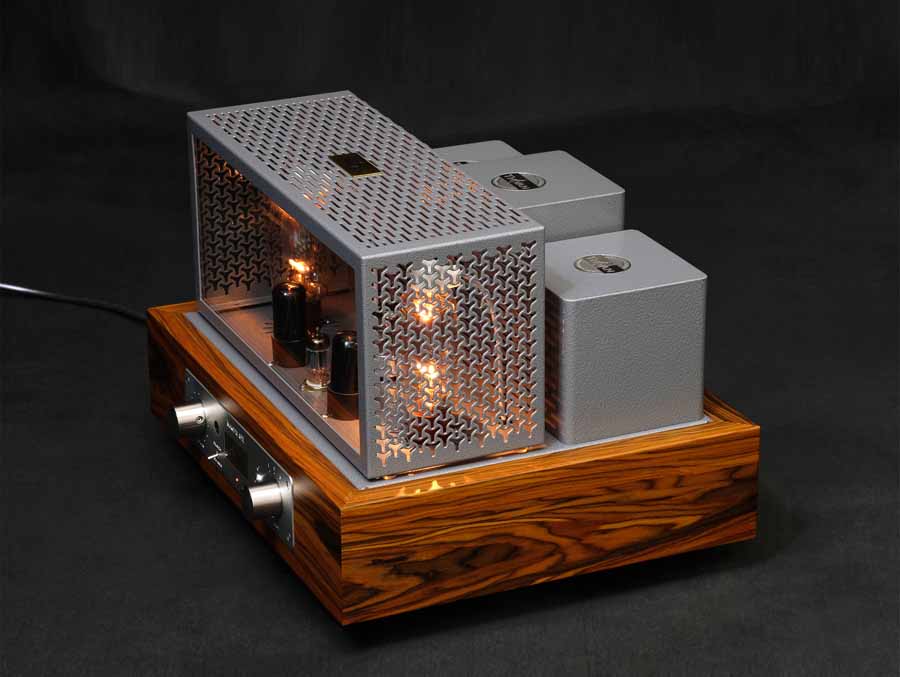

ThivanLabs Magpie 811 amplifier

THIVANLABS OUTPUT TRANSFORMERS

The output transformers in the amps has been specifically designed for the power tubes to maximize their sonic characteristics. The OPTs used in ThivanLabs tube amps are always large. They say that the weight of the OPT has great importance to the sound quality.

Using an interstage transformer is another feature of ThivanLabs tube amplification. The use of an interstage transformer optimally controls the frequency range to be always balanced at different operating power levels.

ThivanLabs Flamingo 300B, Magpie 811 And Robin DL50 Valve Amps

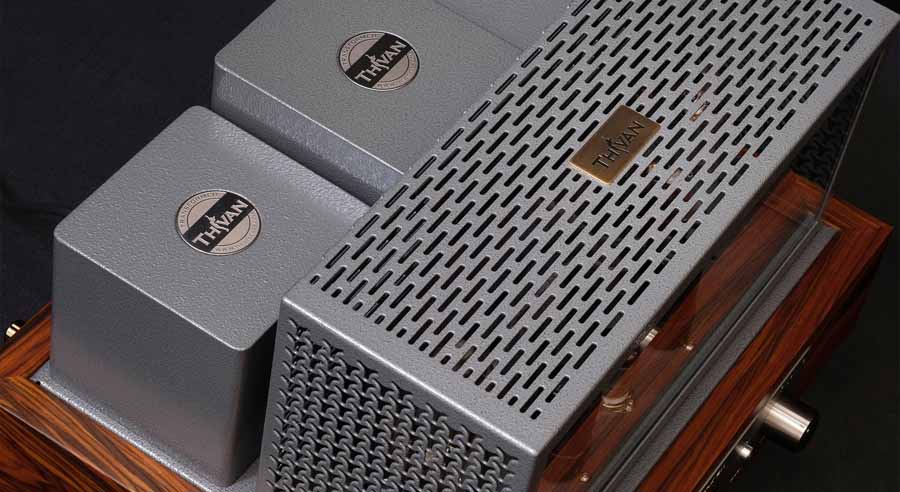

Robin DL50

HEADPHONE AMPLIFIERS

In addition to the main versions Flamingo 300B, Magpie 811, Robin DL50, headphone amplifier versions using 300B, 811 and 6H13C tubes are also developed in parallel with the standard models.

THIVANLABS FLAMINGO 300B

The new ThivanLabs Flamingo 300B is the 15th version that has been developed in ThivanLabs’s 300B amplifier line. Typical circuit designs for 300B that have been implemented include push-pull circuits up to 28W, single-ended circuits up to 8W, designed as integrated or as power amps, and a block or monoblock.

ThivanLabs Flamingo 300B, Magpie 811 And Robin DL50 Valve Amps

Flamingo 300B

The new version is a single-ended design using two 300B tubes for the power-stage and 12AU7, 6SN7, 6V6 tubes for the pre-stage. With an output power of 8W, this single-ended design effectively leverages the 300B’s sound quality.

THIVANLABS FLAMINGO 300B SINGLE-ENDED AMP SPECIFICATIONS

Inputs: 1 XLR ; 2 RCA

Speakers: 4, 6, 8, 16 Ohms

Vacuum tube complement

– Output tubes: 2 x 300B

– Pre & driver tubes: 1 x 12AU7 ; 1 x  6SN7 ; 2 x 6V6

Output Power (per channel): CLASS A – 8W RMS

Frequency response: 10Hz – 30kHz (-3dB)

Input Sensitivity: 550mV

Input Impedance: 100kOhms

Power Requirements: 230V (possible to set 100 /110/120/240v/50-60Hz by different markets)

Power Consumption: 80W

Dimensions (W x D x H): 45 x 40 x 29 (cm)

Weight: 32kgs

Price in Europe: € TBC

ThivanLabs Flamingo 300B, Magpie 811 And Robin DL50 Valve Amps

Rear of the Flamingo 300B

THIVANLABS MAGPIE 811

The ThivanLabs Magpie 811 uses the 811 direct heating triode tube which ThivanLabs has researched to develop tube amplifiers since 2012. The Magpie 811 is a single-ended integrated amp. The 811 is used in combination with the 12AU7 pre-tubes.

ThivanLabs Flamingo 300B, Magpie 811 And Robin DL50 Valve Amps

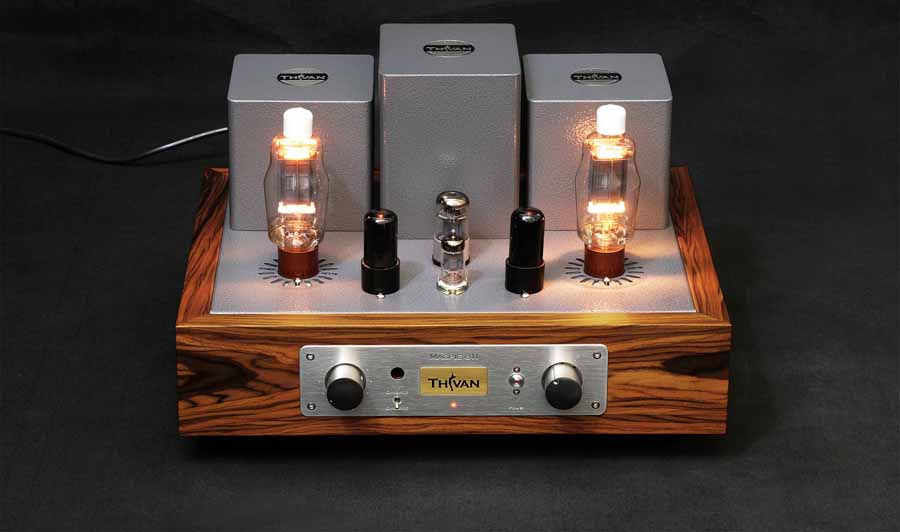

Magpie 811

THIVANLABS MAGPIE 811 SPECIFICATIONS

Inputs: 1 XLR ; 2 RCA

Speakers: 4, 6, 8, 16 Ohms

Vacuum tube complement

– Output tubes: 2 x 811 (572)

– Pre & driver tubes: 1 x 12AU7 ; 1 x  6SN7 ; 2 x 6V6

Output Power (per channel): CLASS A – 11W RMS

Frequency response: 10Hz – 30kHz (-3dB)

Input Sensitivity: 400mV

Input Impedance: 100kOhms

Power Requirements: 230V (possible to set 100 /110/120/240v/50-60Hz by different markets)

Power Consumption: 180W

Dimensions (W x D x H): 45 x 40 x 29 (cm)

Weight: 31kgs

Price in Europe: € TBC

THIVANLABS ROBIN DL50

The Robin DL50 is the latest version of the ThivanLabs DL50 series. It uses 6H13C power tubes, this power tube has been used longest in ThivanLabs’s tube amp ecosystem. The first version introduced in 2007 was the DL60 using an equivalent power tube Bendix 6080WB. In later versions, 6H13C is mainly used. The electrical circuit design has been optimized for the 6H13C to fully exploit the sonic strengths of the tubes.

ThivanLabs Flamingo 300B, Magpie 811 And Robin DL50 Valve Amps

Thivanlabs Robin DL50 amp

THIVANLABS ROBIN DL50 SPECIFICATIONS

Inputs: 1 XLR ; 2 RCA

Speakers: 4, 6, 8, 16 Ohms

Vacuum tube complement

– Output tubes: 4 x 6H13C (6AS7, 5998)

– Pre & driver tubes: 2 x 6H2P (12AX7) ; 2 x  6SN7

Output Power (per channel): CLASS A – 15W RMS

Frequency response: 3Hz – 75kHz (-3dB)

Input Sensitivity: 300mV

Input Impedance: 100kOhms

Power Requirements: 230V (possible to set 100 /110/120/240v/50-60Hz for different markets)

Power Consumption: 210W

Dimensions (W x D x H): 45 x 40 x 29 (cm)

Weight: 31kgs

Price in Europe: € TBC

HiFi Pig Says: Very attractive looking valve amps at affordable prices, nice to see them available to the European market.
