A NEW AMPLIFIER AND THE MATCHING PRE HAVE JUST BEEN RELEASED BY FRENCH HIFI BRAND TOTALDAC

The Totaldac Amp-1-sublime and Totaldac d1-driver-sublime preamplifier have been designed to work together, and as part of a complete Totaldac system.

Sublime is Totaldac’s flagship range of products.

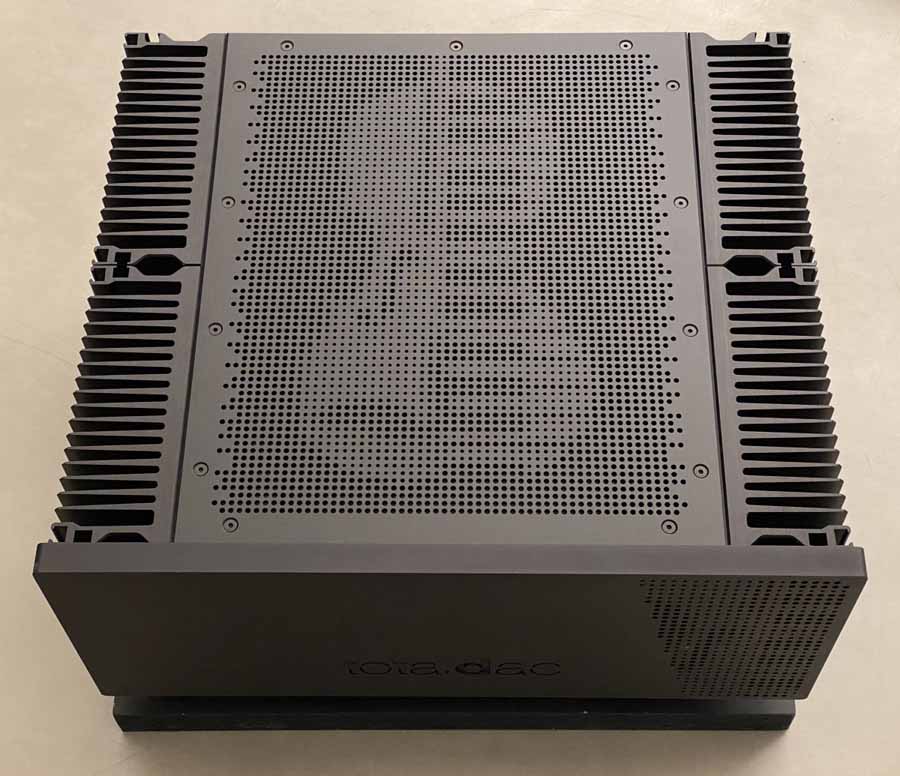

TOTALDAC AMP-1-SUBLIME AMPLIFIER

The Totaldac Amp-1-sublime is the new Totaldac reference amplifier, using solid state components exclusively and available in stereo or monoblock variations.

NEXT GENERATION

The triode stage used in the previous generation of Amp-1 is now upgraded by an innovative transistor gain stage, using very low component count (all discrete) and no global feedback.

VISHAY RESISTORS

A very high voltage (240Vdc) is used to give the maximum dynamic to the signal and its power supply is based on a discrete regulator as well. The circuit uses 0.01% VAR Bulk Metal Foil resistors from Vishay in the critical voltage gain stage. The gain stage is then followed by an equally powerful transistor buffer, using no global feedback as well.

This design combines no global feedback, low noise (0.2mVrms), high gain (33dB), high bandwidth (400KHz) and high current (driving 1ohm) thanks to its 2500VA/25kg live-power transformer.

STEREO OR MONOBLOCKS

The Amp-1-sublime amplifier is available as stereo amplifier with RCA inputs or as fully balanced monobloc with XLR input.

SPECIFICATIONS

Stereo version:
stereo power amplifier
zero global feedback
fully discrete design
fully solid state
using 0.01% VAR Bulk Metal® Foil resistors from Vishay in the critical voltage gain stage
class AB with medium level of class A for moderate power consumption and for moderate heat in the room
2500VA, 26kg LIVE-POWER transformer with separate windings for left and right channel
separate left/right power supply rectifications and capacitor banks for an almost dual mono configuration (like two monoblocs in one chassis)
designed on Magico M6, on a 105dB large coax horn system and on Totaldac speakers
RCA inputs
largest Mundorf binding posts
2x150W under 8ohm
2x300W under 4ohm
2x500W under 2ohm
stable under 1ohm
33dB gain
0.77V sensitivity
input impedance: 47Kohm
frequency response at -3dB: 0.06Hz to 400KHz
very low noise tested in real life on very high efficiency speakers (no hum on 105dB bass horns)
input offset tolerance without lowering the signal quality: +/-100mV
power consumption when music level is moderate: 175Watt @ 230V
230mm height
483mm width
453mm depth including connectors
54kg weight

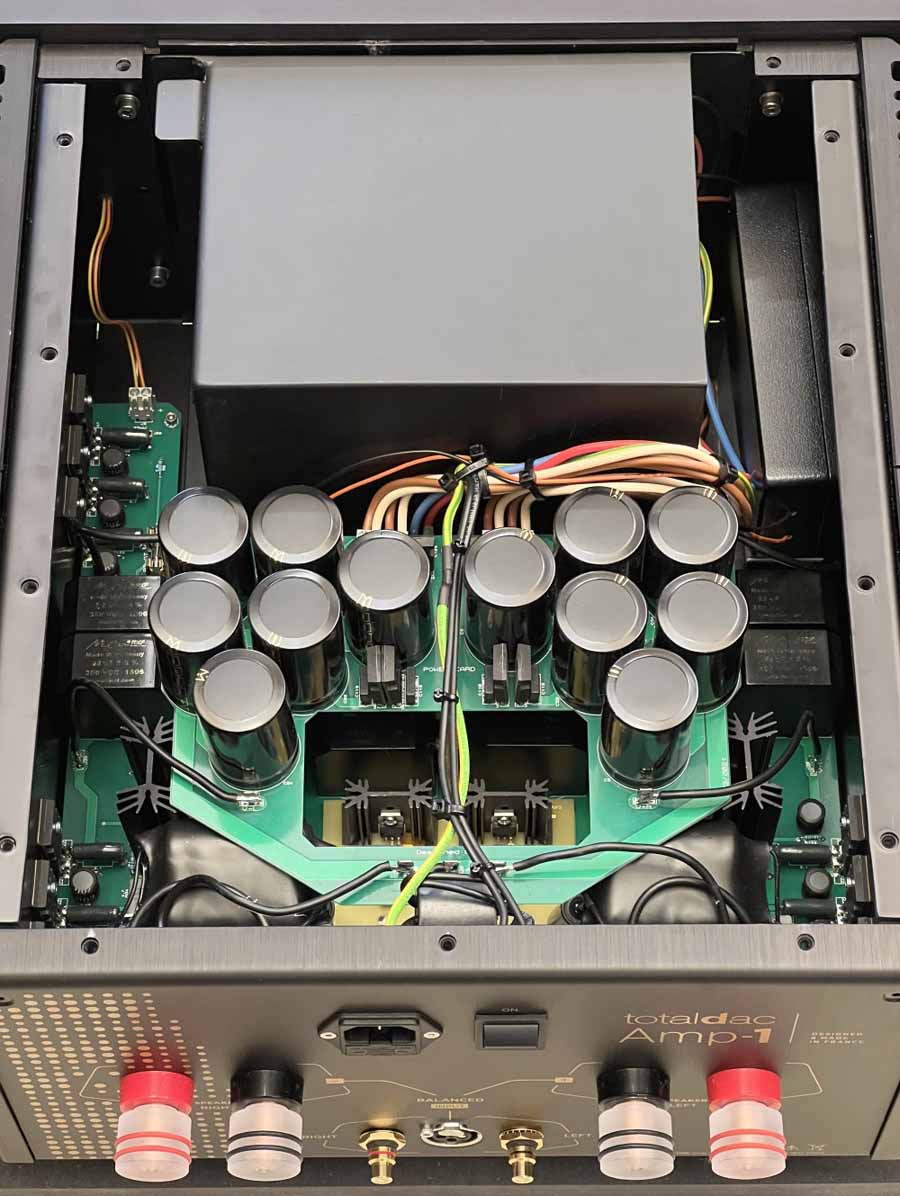

Monobloc version:
-XLR input
-fully balanced from the XLR input to the speaker output
-an Amp-1-sublime monobloc can also be used as a stereo amplifier with RCA inputs
-600W under 8ohm
-1000W under 4ohm

Available options:
-120V or 100V power (standard is 230V)

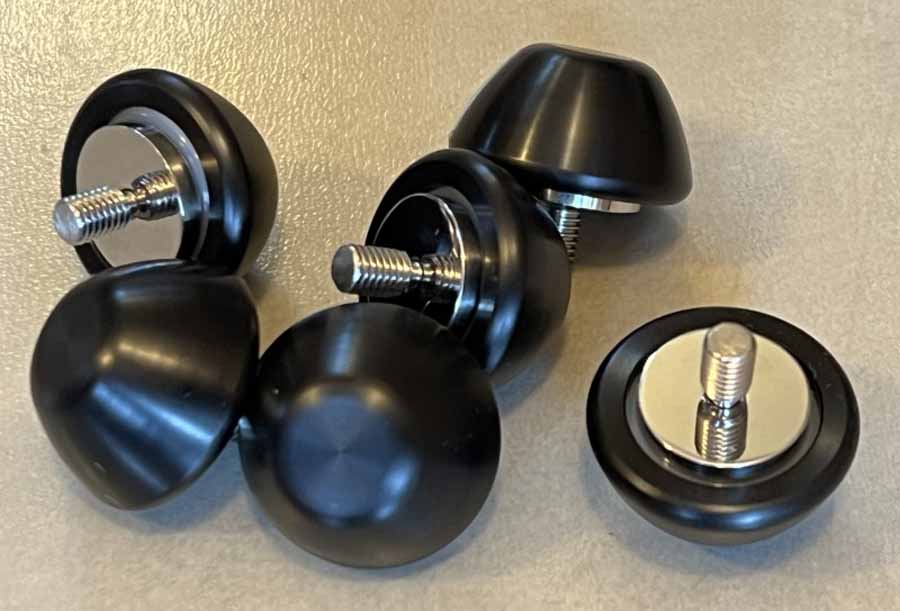

-damping feet

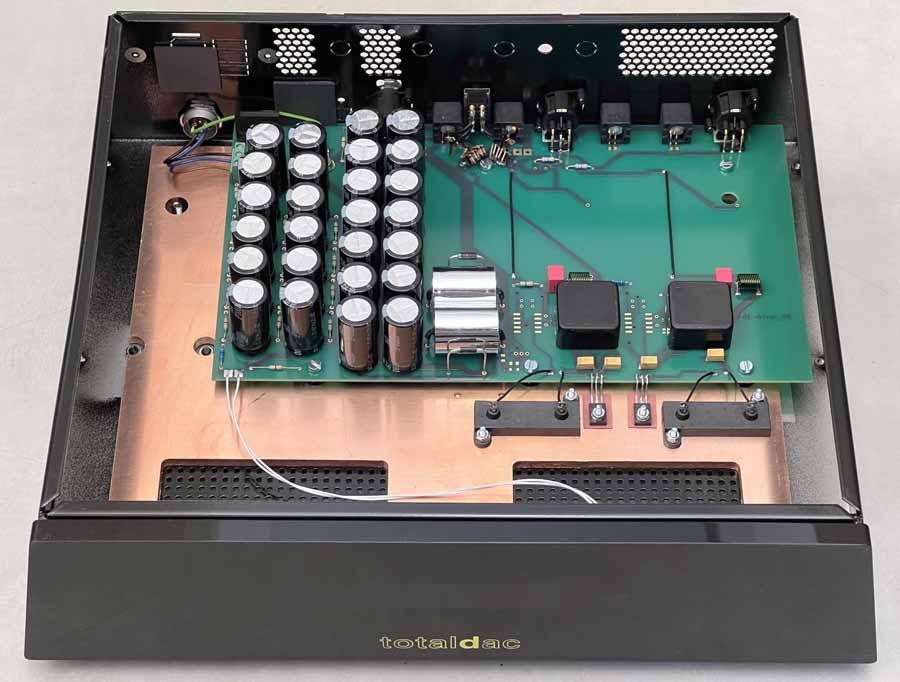

TOTALDAC D1-DRIVER-SUBLIME PREAMPLIFIER

A new d1-driver-sublime preamplifier has also been designed by Totaldac to perfectly match the new amplifier.

The d1-driver-sublime has no volume control because it relies on the DAC volume control but in case the complete system gain is too high (DAC + amp + speakers + room) an analogue -15.5dB attenuation can be activated using a switch at the back panel. This attenuator uses 12 pieces of 0.01% VAR Bulk Metal® Foil resistors from Vishay.

SPECIFICATIONS

-one-box stereo version: RCA inputs, RCA outputs + unbalanced XLR outputs
-two-box monobloc version: RCA inputs + XLR inputs, RCA outputs + balanced XLR outputs
-voltage gain: 0dB gain (x1 factor) or -15.5dB attenuation, selected by a swict on the back panel
-very high bias current class A design for a natural low output impedance and low distorsion
-very high grade components in the signal path, and no capacitor in the signal path.
-extreme low noise due to discrete design (no IC at all) and external power supply, matching the noise of d1-sublime DAC
-input impedance: 12Kohm
-natural low output impedance plus added 33ohm pure resitor for a perfect interconnect impedance matching
-can drive anything above 100ohm without distorsion
-distorsion: 0.0025%
-frequency cut-off at -3dB, RCA output: 2.5MHz
-using 12 pieces of 0.01% VAR Bulk Metal® Foil resistors from Vishay in the attenuator and 4 in the balanced output
-aluminium and PMMA enclosure with massive pure copper antivibration plate
-power consumption 20W
-main box dimensions: height 110mm, width 360mm, depth 290mm
-power supply dimensions: height 65mm, width 122mm, depth 180mm
-weight: 7kg
Available options:
-damping feet.
-one-box stereo version or monoblocs version.
-two pairs of outputs for a subwoofer or a headphone amplifier or for bi-amping.
-silver massive aluminium front panel.
-115V power option.

COMPLETE TOTALDAC SYSTEM

In case the complete system is missing some gain with some tracks recorded very low, the latest Totaldac DACs offer a +12dB digital gain option, giving  two selectable gain options in a Totaldac system to optimize all configurations.

TOTALDAC AMP-1-SUBLIME & D1-DRIVER-SUBLIME PREAMPLIFIER PRICE

d1-driver-sublime: 7,200€ incl VAT in Europe, 6,600€ excl VAT outside of Europe

Amp-1-sublime power amplifier (stereo or monobloc): 26,000€ incl VAT in Europe, 24,500€ excl VAT outside of Europe.

HiFi PiG Says: Totaldac are deservedly becoming a globally known name, representing some of the best French boutique HiFi.
