HIGH END FRENCH HIFI BRAND TOTALDAC LAUNCH THREE NEW DACS INCLUDING THE FLAGSHIP TOTALDAC D-1 SUBLIME DAC

The Totaldac d1-sublime DAC is the brand’s new four-box flagship, with two new one-box options the Totaldac d1-unity DAC and Totaldac d1-triunity DAC. All are built around the new Totaldac Unity DAC architecture.

TOTALDAC UNITY DAC ARCHITECTURE

The unity architecture has been designed to allow a better clock distribution, a lower jitter, a lower R2R power supply rail impedance and a lower noise in the digital section. The R2R ladder resistors are still naked Vishay foil.

The new unity architecture allows all Totaldac d1 DACs to be upgraded to this new architecture level.

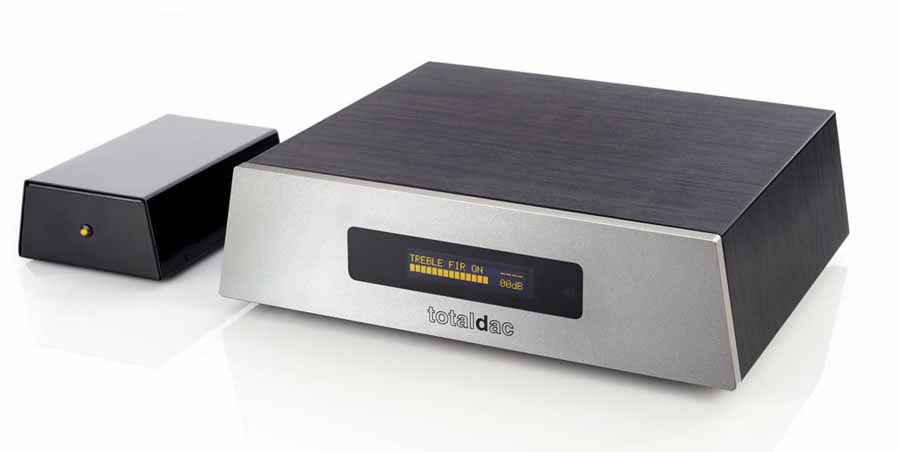

Totaldac D1-Unity DAC with the silver front plate

OUTPUT STAGE

The output stage is also fully new, in term of components and in term of schematics, and exclusively using discrete components. This new output stage produced a 3.5V unbalanced signal and a 7V balanced signal with low impedance for the best versatility, to be connected to all preamps, all integrated amps and also directly to all power amps.

TOTALDAC D1-UNITY DAC

The d1-unity benefits from the new Totaldac unity DAC architecture, with about 150 components upgraded or added to the electronic boards. This DAC can also integrate an internal streamer board option for network use, making the Totaldac d1-unity DAC into a Roon Ready DAC and streamer.

TOTALDAC D1-TRIUNITY DAC

The d1-triunity benefits from the new Totaldac “unity” DAC architecture, with about 290 components upgraded or added to the electronic boards. The d1-triunity is a d1-unity but with 3 R2R ladders per channel instead of one, giving a lower noise and the real scale of each instrument.

TOTALDAC D1-SUBLIME DAC

The Totaldac d1-sublime DAC also has the new Totaldac unity DAC architecture, with around 680 components upgraded or added to the electronic boards. The d1-sublime is a 4-box DAC composed of two d1-triunity DACs in monoblocs configuration with a special edition reclocker. It has a  3-output large-box live-power power supply and comes with two UP12 AES-EBU cable and a custom BNC clock cable. The monobloc configuration is proven by the Totaldac d1-twelve DAC, Vincent from Totaldac says that it “gives even more 3D and more body to the sound”.

The Totaldac d1-sublime DAC also has a second unbalanced and balanced output stage which can be used to feed a bass section or a subwoofer or a headphone amplifier, without risk of altering the main output.

Four box flagship Totaldac D1-Sublime DAC

TOTALDAC D1-UNITY DAC AND D1 TRIUNITY DAC SPECIFICATIONS

192KHz asynchronous Xmos USB, 192KHz coax RCA, 192KHz AES-EBU, 96KHz optical, selected from a remote control.

44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz and 192KHz, 16 to 24 bit formats supported.

As an option, DSD (DoP standard) supported on coax, AES-EBU and USB inputs.

Embedded custom clock with anti-jitter FIFO memory.

3.5Vrms max RCA, 7Vrms max XLR analogue output.

Volume control, adjusted by a remote control and an OLED display, works for all inputs.

Phase polarity selected by remote control.

Non-oversampling DAC compensation filter activated or deactivated by remote control.

D1-unity DAC: R2R DAC technology using 100 pieces of 0.01% VAR Bulk Metal Foil resistors Vishay Foil Resistors.

D1-triunity DAC: R2R DAC technology using 300 pieces of 0.01% VAR Bulk Metal Foil resistors Vishay Foil Resistors.

Class A discrete transistor output stage.

External power supply to minimize the noise on the embedded preamp.

Aluminium and PMMA enclosure with solid pure copper antivibration plate.

Power consumption 14.2W @44.1KHz, 16.5W @192KHz.

DAC dimensions: height 110mm, width 360mm, depth 290mm. Power supply dimensions: height 65mm, width 122mm, depth 180mm.

Weight: 7kg.

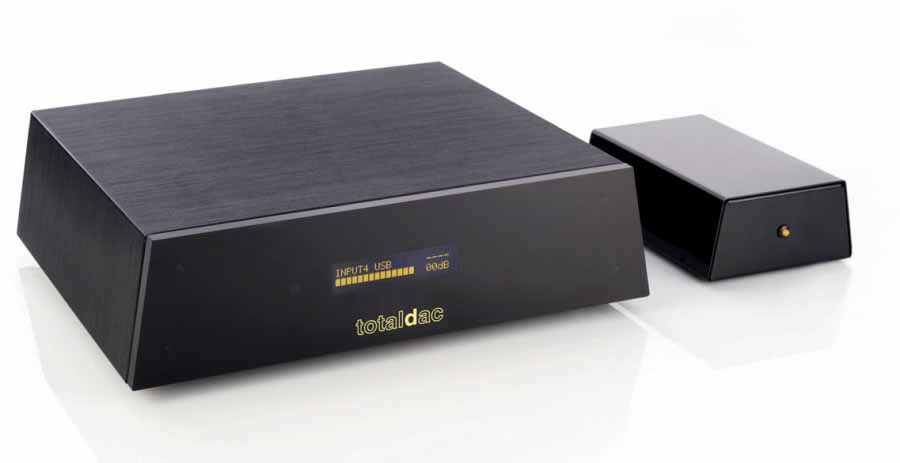

Totaldac D1-Triunity DAC in black

TOTALDAC D-1 SUBLIME DAC SPECIFICATIONS

192KHz asynchronous Xmos USB, 192KHz coax RCA, 192KHz AES-EBU, 96KHz optical, selected from a remote control.

44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz and 192KHz, 16 to 24 bit formats supported.

As an option, DSD (DoP standard) supported on coax, AES-EBU and USB inputs.

Embedded custom clock with anti-jitter FIFO memory.

3.5Vrms max RCA, 7Vrms max XLR analogue output.

Volume control (with mute), adjusted by a remote control and an OLED display, works for all inputs.

Phase polarity selected by remote control.

Non-oversampling DAC compensation filter activated or deactivated by remote control.

R2R DAC technology using 600 pieces of 0.01% VAR Bulk Metal Foil resistors Vishay Foil Resistors.

Class A discrete transistor output stage.

External power supply to minimize the noise on the embedded preamp.

Aluminium and PMMA enclosure with solid pure copper antivibration plate.

Power consumption 45W.

Each box dimensions: height 110mm, width 360mm, depth 290mm.

Weight: total 32kg.

Available options on all three models: live-power grade power supply, DSD (DoP) option. Silver solid aluminium front panel. 115V power option. BNC coaxial digital input instead of RCA. 2 or 3-way active crossover or more. Bass boost.

TOTALDAC D1-UNITY DAC PRICE

12,500 euros incl VAT in Europe, 11,500 euros excl VAT outside of Europe

TOTALDAC D1-TRIUNITY DAC PRICE

24,000 euros incl VAT in Europe, 22,000 euros excl VAT outside of Europe

TOTALDAC D1-SUBLIME DAC PRICE

(4 boxes) 50,000 euros incl VAT in Europe, 46,000 euros excl VAT outside of Europe

HiFi Pig Says: 2023 promises to be an exciting year for Totaldac, you will be able to hear their new flagship at the MOC at High End Munich this year.
