THE NEW TRIANGLE CAPELLA ACTIVE STREAMING SYSTEM COMES WITH A WISA STEREO HUB AND OPTIONAL TURNTABLE

The new Triangle Capella loudspeakers are designed as connected streaming system with a compact Stereo Hub.

The Triangle Capella is Bluetooth and Wi-Fi compatible (Airplay, Chromecast, UPnP/DLNA, Roon Ready), the Stereo Hub communicates wirelessly with the speakers using WISA technology.

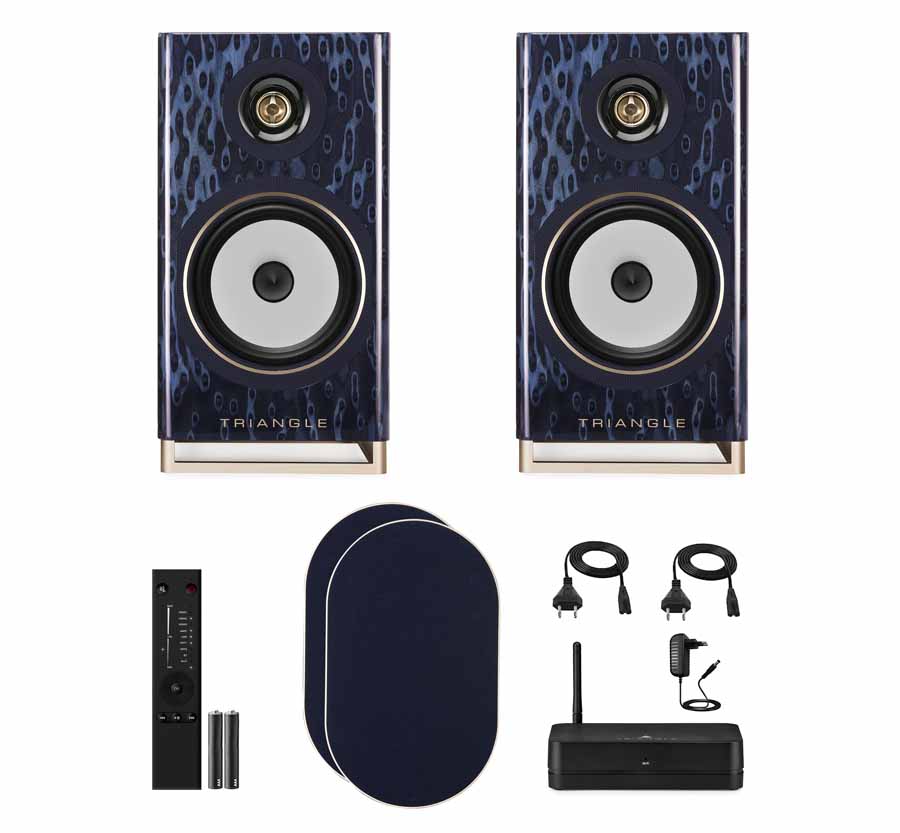

TRIANGLE CAPELLA STEREO HUB

The compact stereo hub is the central point of the Capella system. It concentrates all inputs, whether wireless, integrating Bluetooth and Wi-Fi technologies, analogue or digital wired connection. This compact, remote-controlled box centralises all your audio sources via HMDI, USB, optical, RCA and more. The Stereo Hub has the following wired connections; 1 x HDMI (ARC/CEC), 1 x RCA Stereo, 1 x Coaxial, 1 x USB-B, 3 x Optical SPDIF and 1 x Jack Stereo / Optical.

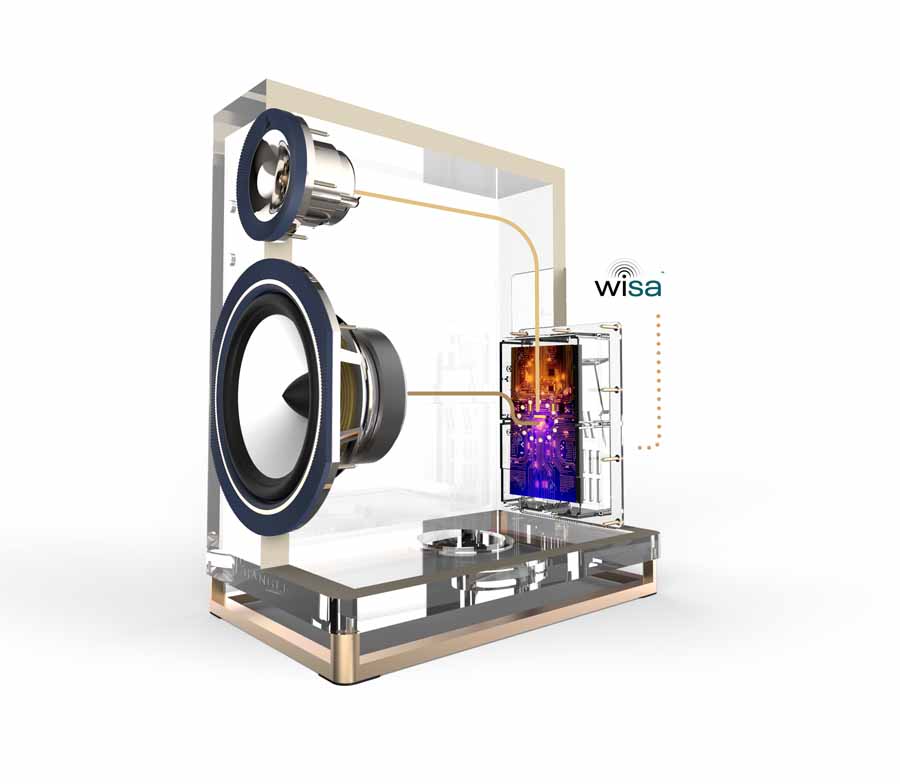

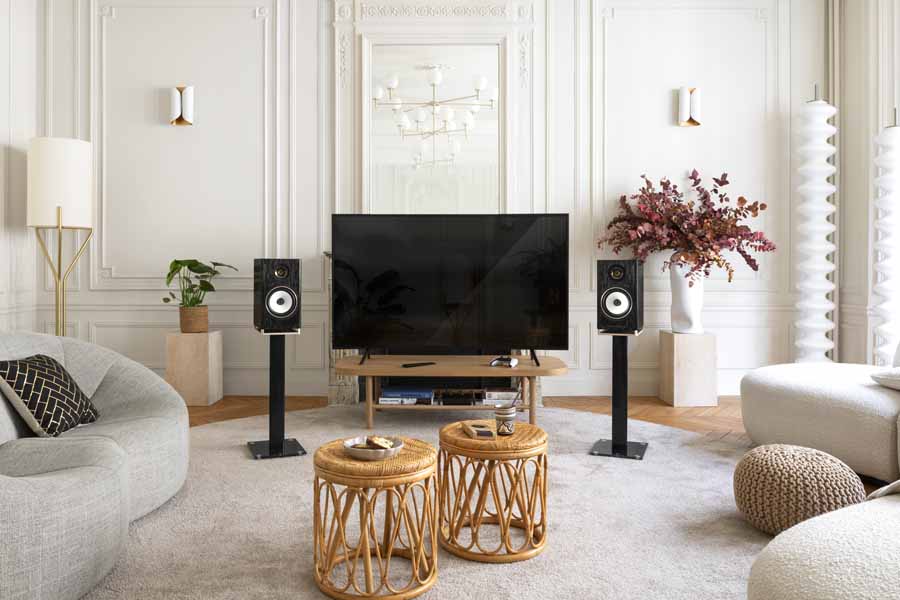

The Triangle Capella system uses WiSA wireless audio transmission technology, so you can place the speakers anywhere in your home. Any audio source, whether from a streaming service or connected to one of the system’s inputs, is managed by the WiSA compatible Stereo Hub. which then streams the signal to your high-resolution speakers with, say Triangle, no noticeable latency. This means you can place the Stereo Hub close to your AV equipment (TV, turntable, computer, etc.) and freely position the speakers around the room.

TRIANGLE CAPELLA LOUDSPEAKERS

The Triangle Capella active speakers benefit from a total power output of 2x100W. Each driver has its own converter and a dedicated 50W amplification circuit. A next-generation digital signal processor (DSP) constantly monitors driver behaviour to reach the system’s full potential, particularly in the low frequencies. The crossover is digitally controlled, ensuring a linear frequency response.

AUTOMATIC CALIBRATION

The Triangle Capella system adapts to your room. The room acoustics and the placement of your speakers will have a major impact on your listening experience. Thanks to the automatic calibration technology, you can easily make measurements in your listening room, the Triangle Capella app then adjusts the sound response of the speakers to adapt to the room.

OPTIONAL ZEN MIC

The wireless ZEN microphone available as an option, enables precise measurement during the automatic calibration of your Triangle Capella system. It collects the data and transmits them to the app, which then analyzes and corrects them.

For even greater sound customization, the app offers a wide range of settings to optimize the sound reproduction of your speakers. Control the response curve directly, by increasing or decreasing selected frequency ranges, so your sound matches your expectations as closely as possible.

Room calibration is available with Apple devices’ built-in microphones, while Android phones/tablets require the use of a Zen microphone. The Zen microphone available for purchase at the price of €125 VAT

FOUR FINISH COLOURS

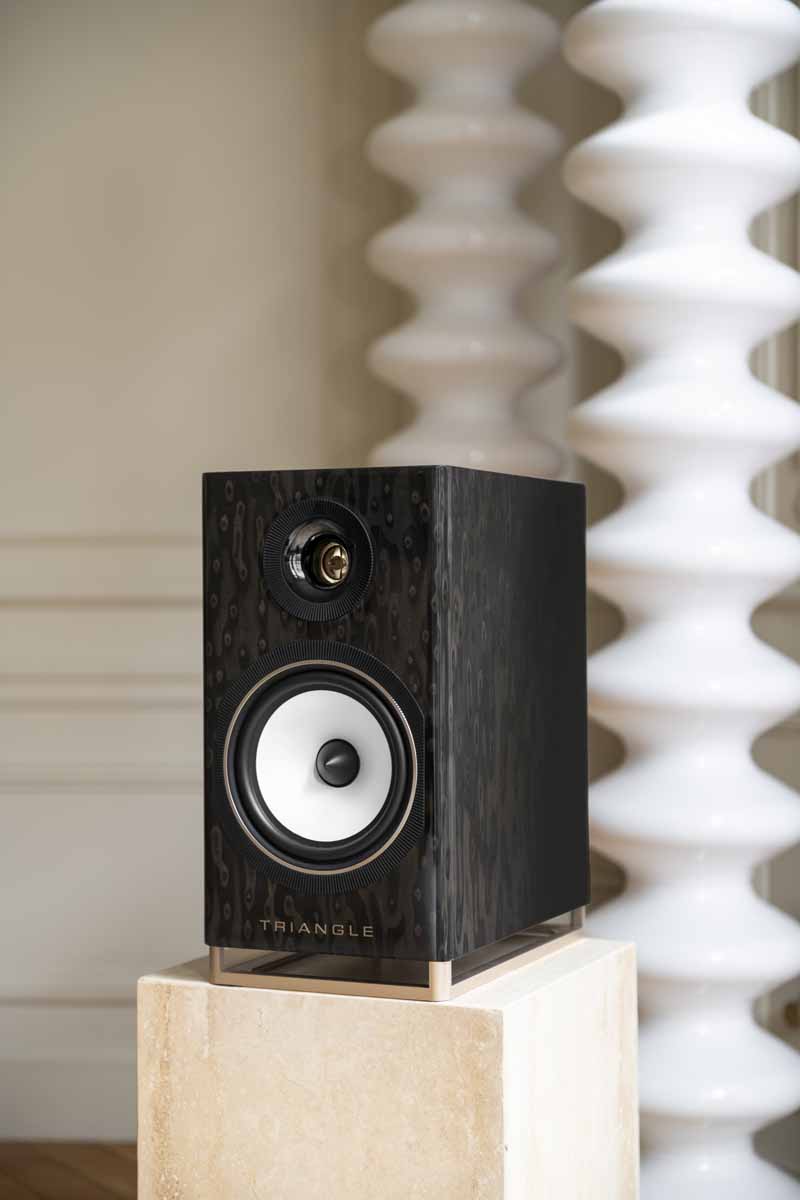

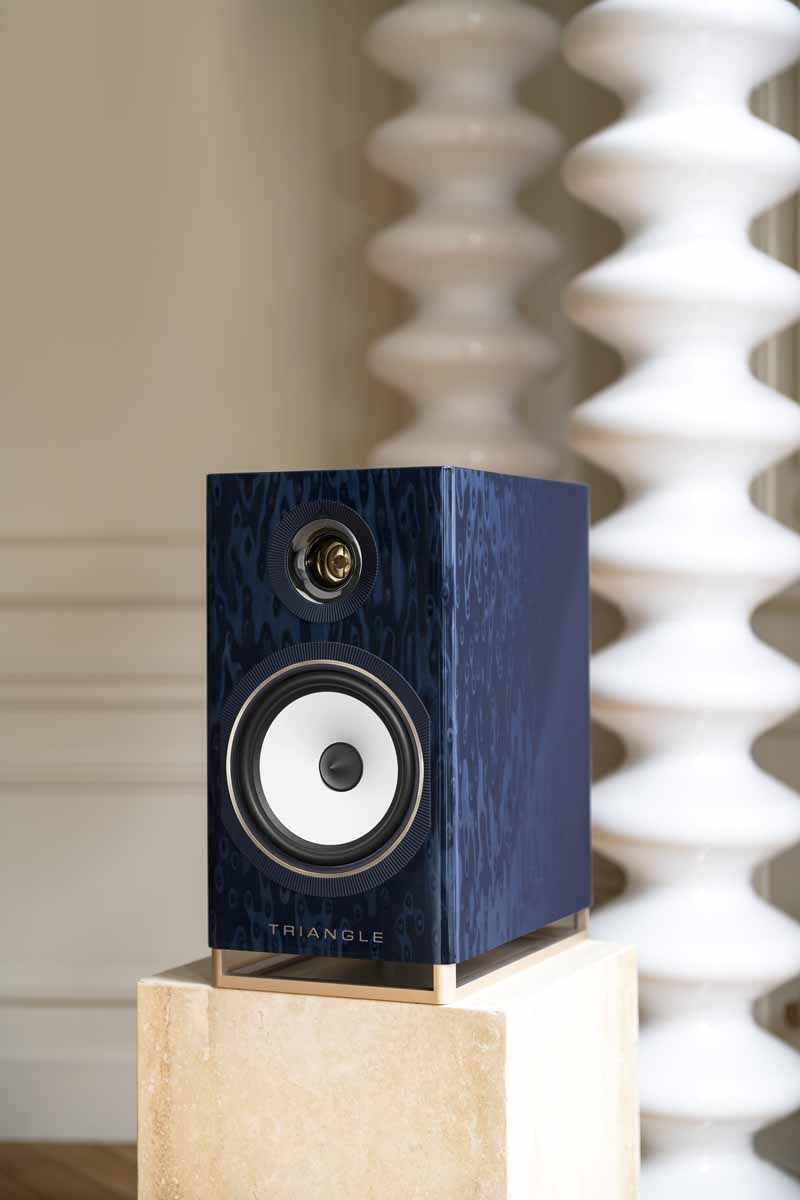

Triangle Capella is available in four finishes: Brown Nebula, Asrtal Blue, Black Star and Space White. Underneath the lacquer is a burr walnut, with wood grains gradually revealing before disappearing in a paint gradation. The speakers have accents of Champagne-finish anodized aluminium.

LUNAR THREE TURNTABLE

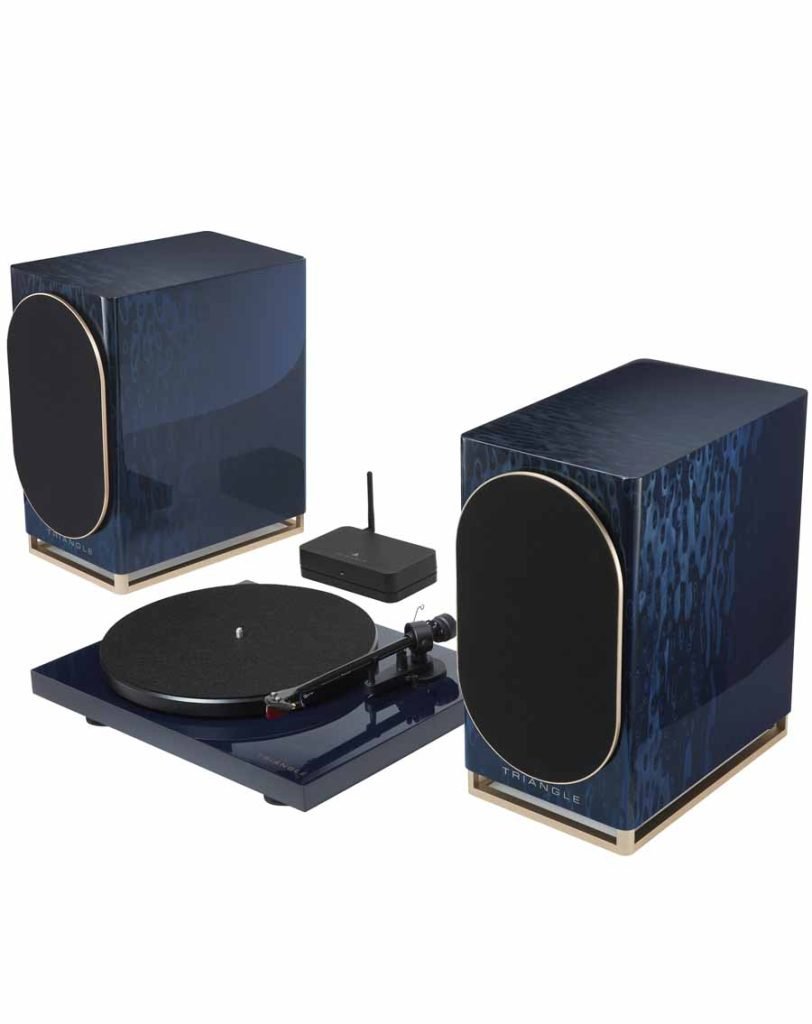

Triangle has partnered with Pro-Ject to build Lunar 3. The Turntable features a phono preamplifier enabling direct connection to the “Stereo Hub”.

All materials, from the wooden structure and steel platter to the carbon tonearm and the Ortofon 2M Red cartridge, have been carefully selected to ensure accurate playback and to absorb any vibrations that might alter the sound.

TRIANGLE CAPELLA DRIVERS

The Triangle Capella drivers benefit from the acoustic expertise and research carried out on the limited 40th anniversary edition of the Esprit range.

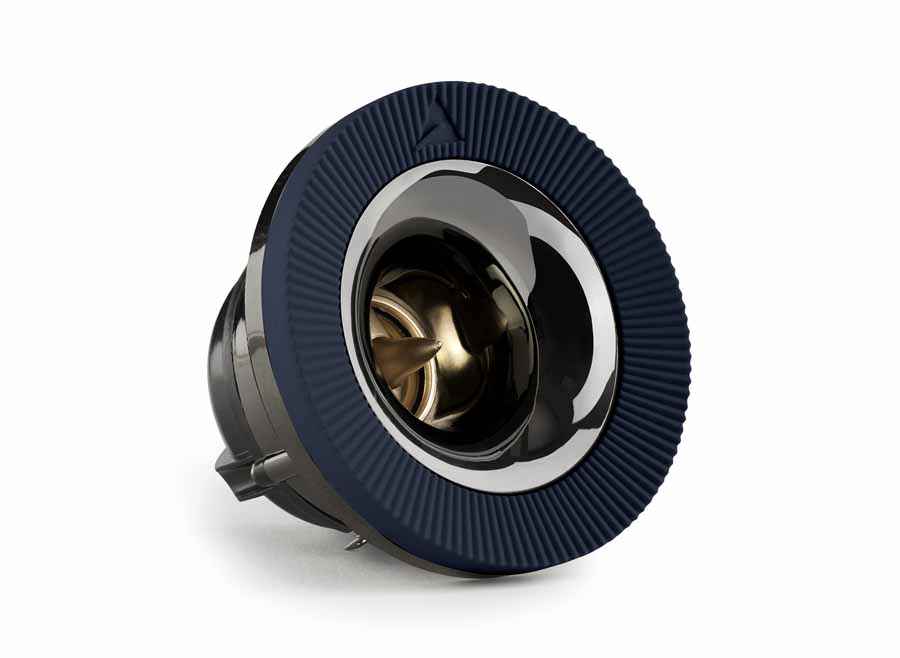

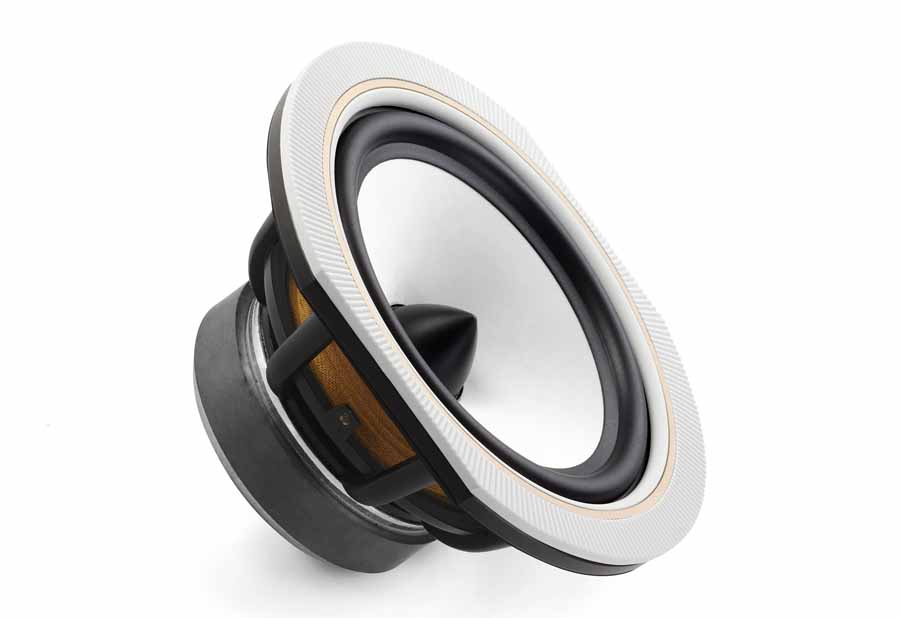

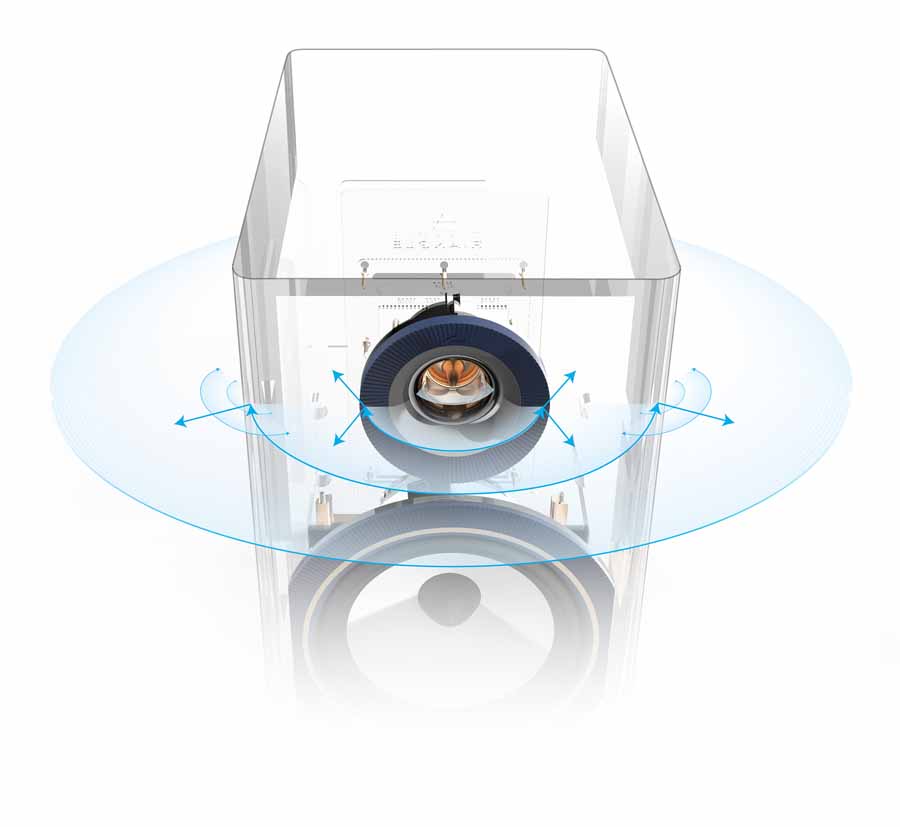

The horn-loaded tweeter deploys the new 25mm magnesium alloy dome and a matched phase plug. The bass/midrange section is handled by a 16cm driver using a cellulose pulp membrane, a distinctive feature of Triangle speakers.

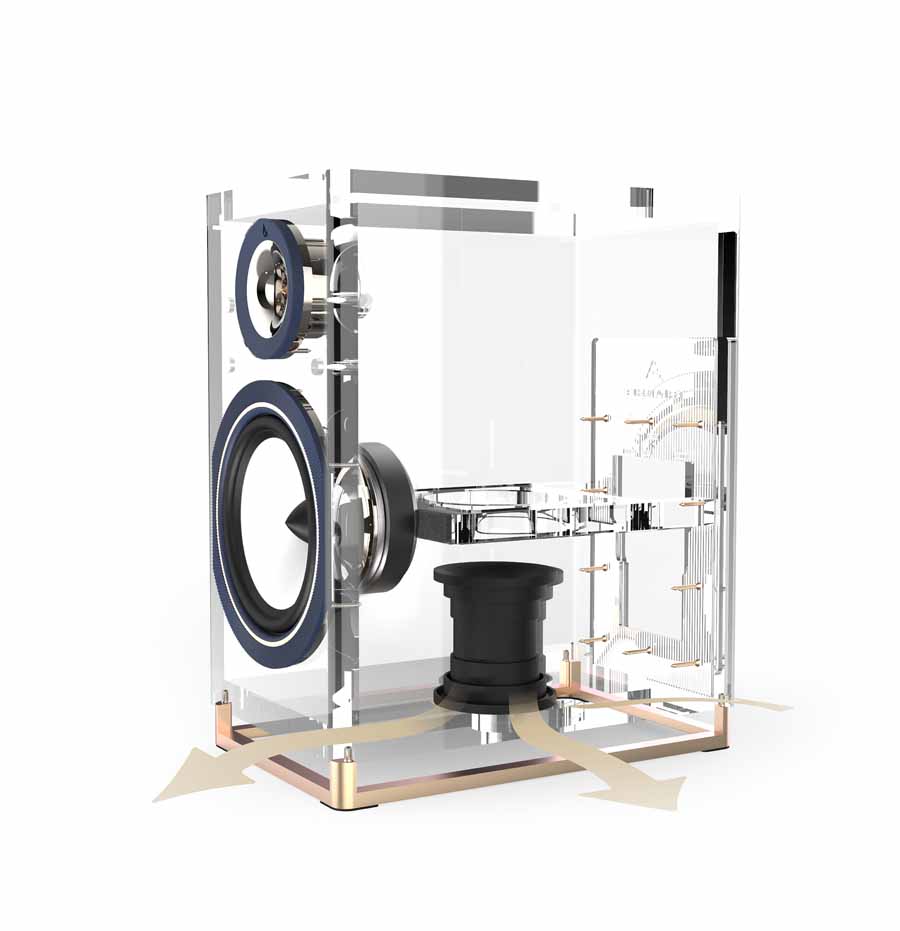

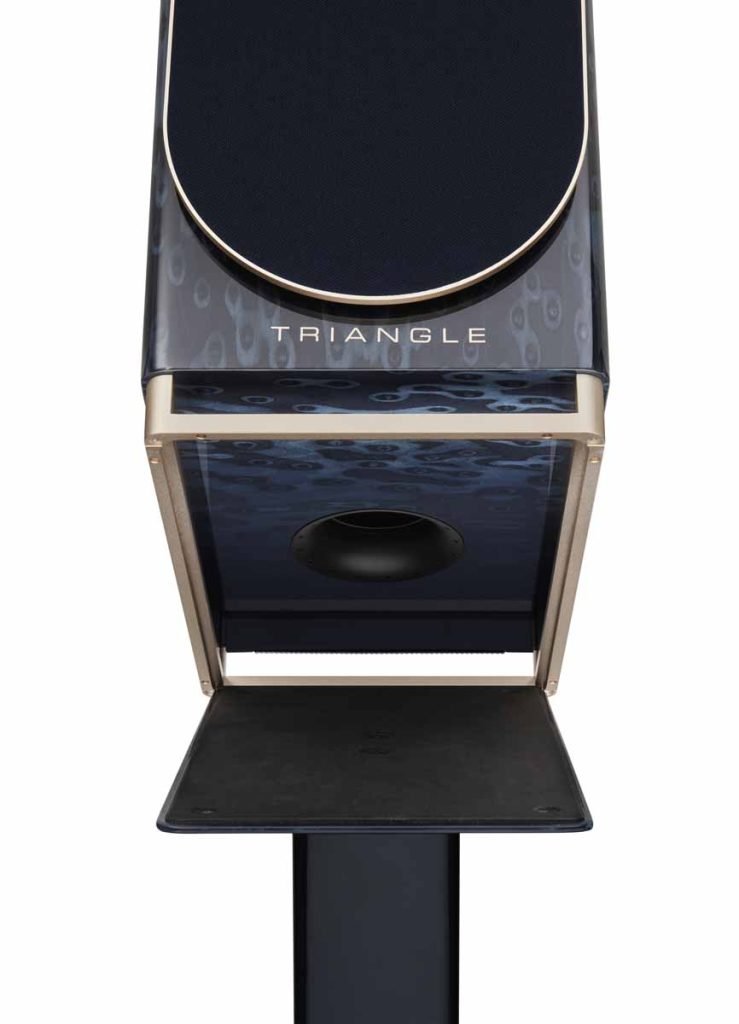

The Triangle Capella speakers are mounted on an aluminium base to enable unobstructed airflow around the port. This ensures even distribution of low frequencies and allows easy placement of your speakers in your room.

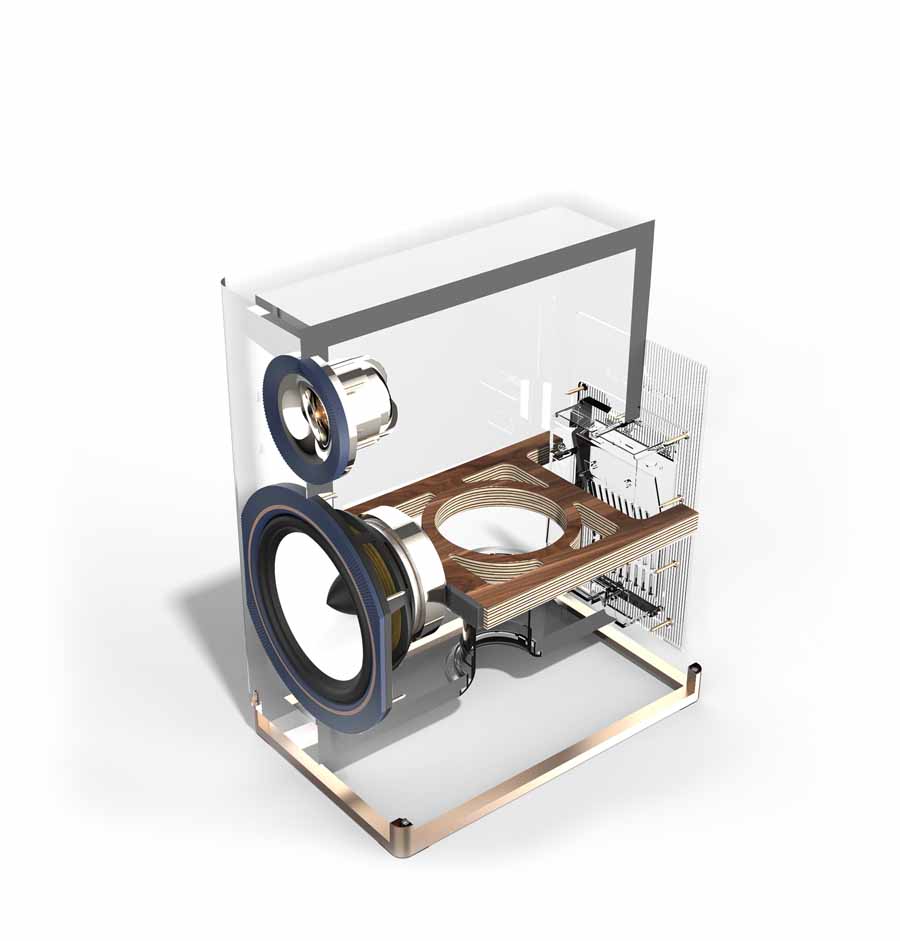

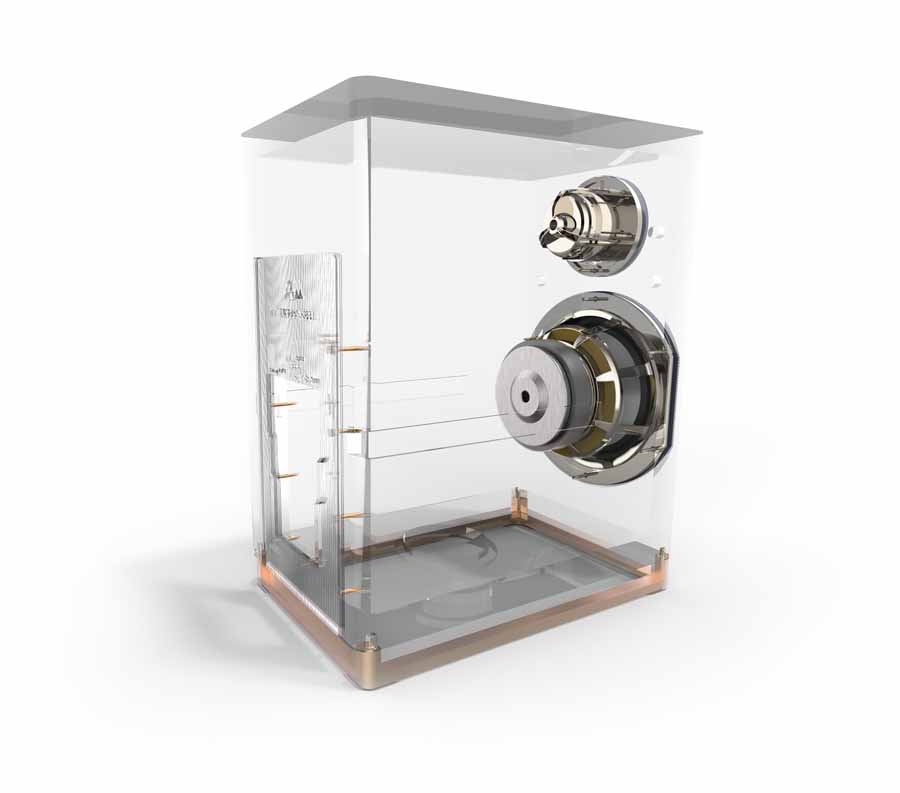

Triangle Capella include proprietary DVAS technology, which consists of using a perforated reinforcement of the cabinet which is pushed against the driver by means of a damping material, thus stiffening the cabinet. The shape of this reinforcement allows optimized airflow from the port. The rounded shape of the cabinetry combined with the sculpted structure of the rims surrounding each driver attenuate the sound disruptions transmitted to the listener.

STANDS

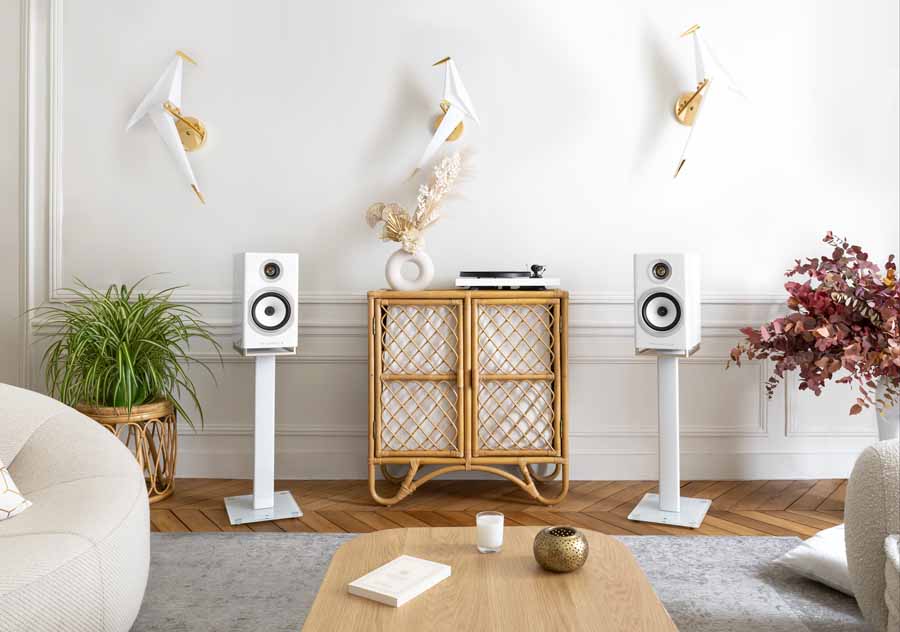

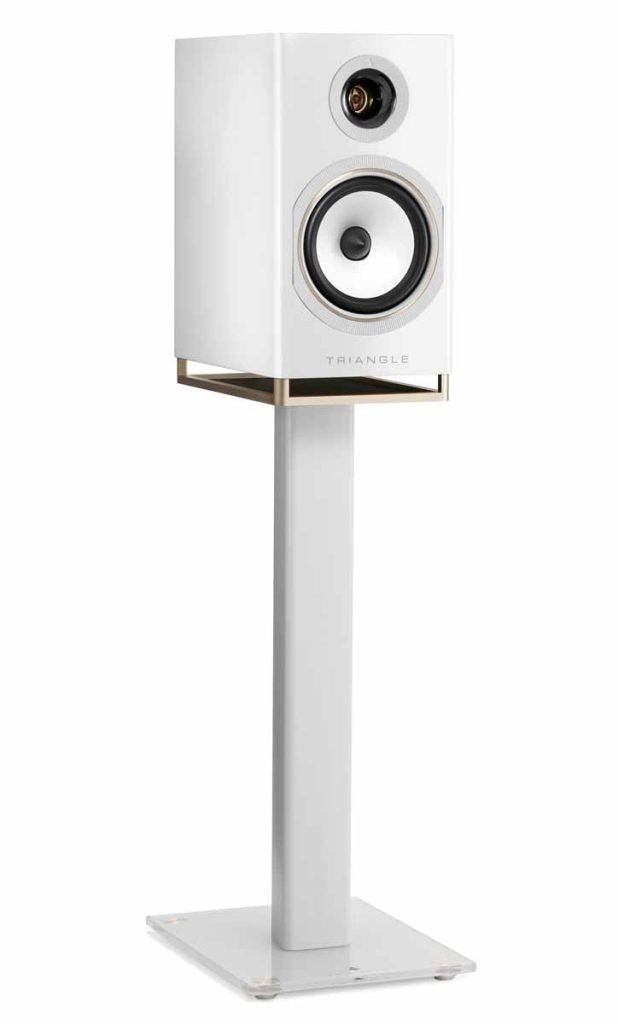

Triangle recommends the S05 supports, the base of the speaker fits perfectly on the upper plate. The S05 is available in different finishes to match your system: Black, White, Blue and Dark Wood.

TRIANGLE CAPELLA TECHNICAL SPECIFICATIONS

Type Bass Reflex Active Speakers with integrated digital signal processor

Number of ways 2 ways with dedicated amplification for each driver

Midrange 1 x 16.5 cm natural cellulose pulp membrane

Tweeter 1 x 25 mm magnesium alloy dome

Bandwidth (+/-3dB Hz-Khz) 42-22

Inputs RCA mono line input

WiSA wireless technology

Power (W Rms) Class D Bi-amplification of 2*50W per speaker (2x100W total)

Treble Cutoff Frequency (Hz) 3600

Filter type Active by DSP

Automatic standby Yes

Dimensions (mm/inch) L x D x H 200 x 315 x 380 7,8 x 12,4 x 14,96

Unit Weight (kg/lb) 8,5 – 18,7

Stereo Hub

Type WiSA / Wireless transmitter

Preamplifier / Streamer

WiFi Wi-Fi IEEE 802.11 b/g/n

Supports 2.4GHz & 5 GHz

WiFi protocol Google Cast / Airplay / Spotify Connect / Roon Ready / DLNA/UpNP

Bluetooth 4.2

Analogue input 1 RCA / Aux 3.5 mm

Digital intput 3 Optical + Aux 3.5mm optical

1 Coaxial / 1 USB-B

TV input 1 HDMI (ARC / CEC)

EQ by app Automatic ROOM EQ

Manual MANUAL EQ

Sampling rate

Analog sources: 24bit/96kHz

Digital sources: 24bit/192kHz

Bluetooth: 16bit/48kHz

WiSA: 24bit/96kHz, 2.6 ms latency

Auto standby Yes, after 20 minutes

Remote Aluminium – Radio-frequency

Application iOS – Android

TRIANGLE CAPELLA PRICE

€2,499 /Pair

Available in the UK through SCV’s dealer network.

HiFi PiG Says: We love the look of the new Triangle Capella Speakers, they form a fully contained system and are finished beautifully.
